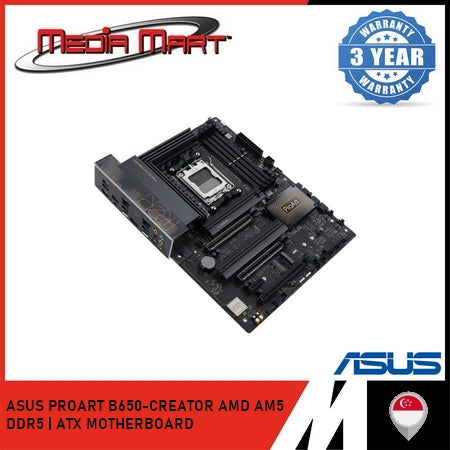

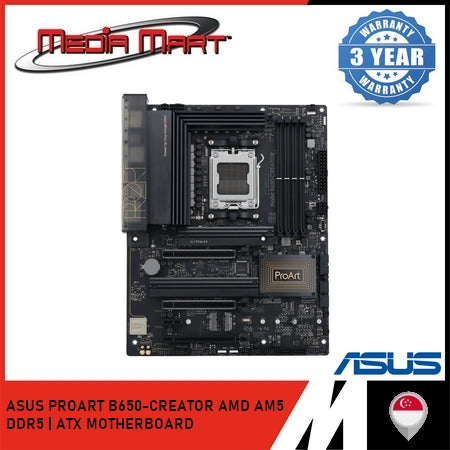

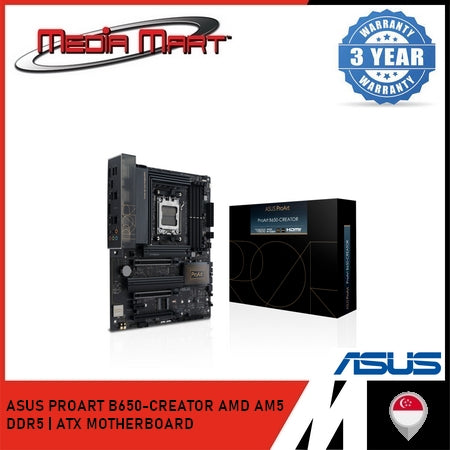

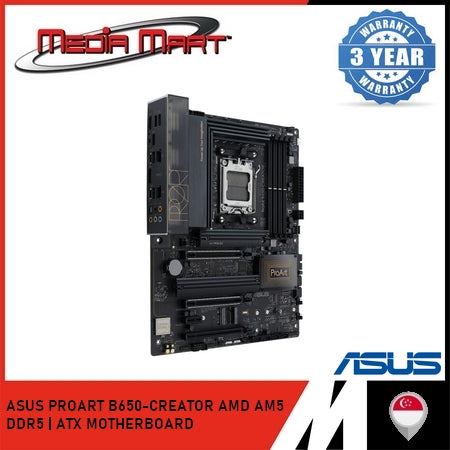

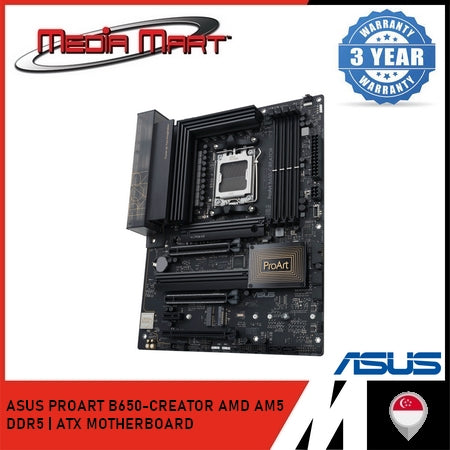

ASUS PROART B650-CREATOR AMD AM5 | DDR5 | ATX MOTHERBOARD

ASUS PROART B650-CREATOR AMD AM5 | DDR5 | ATX MOTHERBOARD

$419.00
$419.00
Sale Sold out

Model: ASUS ProArt B650-CREATOR

Form Factor: ATX (30.5cm x 24.4cm)

CPU Support:

  • AMD Socket AM5

  • Ryzen™ 9000 / 8000 / 7000 Series

  • Refer to ASUS support site for detailed CPU compatibility

Chipset:

  • AMD B650

Memory:

  • 4 x DDR5 DIMM slots

  • Max 192GB

  • Speeds: DDR5 4800–7600+(OC)

  • ECC & Non-ECC, Un-buffered

  • AMD EXPO™ support

  • OptiMem II Technology

Graphics Output:

  • 1 x HDMI 2.1 (up to 4K@60Hz)

  • 1 x USB Type-C® (DisplayPort 1.4 output, up to 8K@60Hz)
    CPU-dependent

Expansion Slots:

  • From CPU:

    • 2 x PCIe 4.0 x16 (x16 or x8/x8)

  • From Chipset:

    • 1 x PCIe 4.0 x16 (x4 mode, shares bandwidth with M.2_3)

    • 1 x PCIe 4.0 x1

  • Check PCIe bifurcation support on ASUS site

Storage:

  • 3 x M.2 Slots:

    • M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000)

    • M.2_2: PCIe 4.0 x4 (2242–22110)

    • M.2_3: PCIe 4.0 x4 (shares bandwidth with PCIEX16_3)

  • 4 x SATA 6Gb/s Ports

  • NVMe and SATA RAID 0/1/10 (RAIDXpert2)

Networking:

  • 1 x Realtek 2.5Gb Ethernet

  • 1 x Realtek 1Gb Ethernet

  • LANGuard Protection

  • Wi-Fi/Bluetooth: M.2 E-key slot (Wi-Fi module sold separately)

USB Ports:

Rear I/O (7 Ports):

  • 1 x USB 3.2 Gen 2 Type-C® (shared with DisplayPort)

  • 3 x USB 3.2 Gen 2 Type-A

  • 1 x USB 3.2 Gen 2 Type-C®

  • 2 x USB 2.0 Type-A

Internal (7 Ports):

  • 1 x USB 3.2 Gen 2x2 Type-C® (up to 60W PD/QC4+)

  • 1 x USB 3.2 Gen 1 header (2 ports)

  • 2 x USB 2.0 headers (4 ports)

Audio:

  • Realtek 7.1 HD Audio CODEC

  • Optical S/PDIF out

  • Premium caps, isolated audio PCB

  • Up to 24-bit / 192 kHz

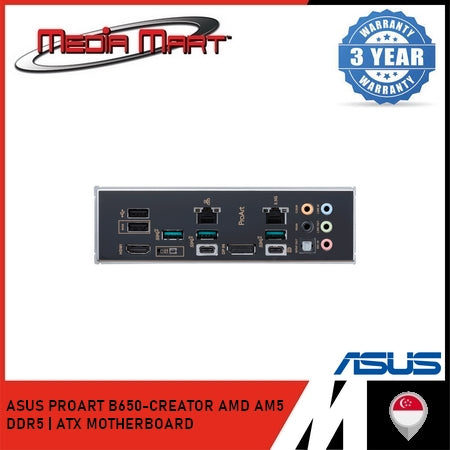

Back Panel I/O:

  • 1 x DisplayPort (input only)

  • 1 x HDMI

  • 5 x Audio jacks

  • 1 x Optical S/PDIF

  • 2 x LAN ports

  • 7 x USB ports (see USB section)

  • 1 x BIOS FlashBack™ button

Internal I/O & Miscellaneous:

  • 1 x 24-pin ATX Power

  • 1 x 8-pin + 1 x 4-pin CPU Power

  • 1 x 6-pin PCIe Power (for 60W front USB charging)

  • 4 x Fan headers (CPU, CPU_OPT, AIO, chassis)

  • 1 x Clear CMOS

  • 1 x COM, 1 x Thermal Sensor, 1 x Thunderbolt (USB4) header

  • 3 x ARGB Gen 2, 1 x RGB header

Special Features:

  • Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, Q-Connector

  • Thermal: M.2 + VRM heatsinks

  • AURA Sync: ARGB/RGB headers

  • ProArt Creator Hub, Armoury Crate, AI Suite 3

  • BIOS FlashBack™, CrashFree BIOS 3, EZ Flash 3

  • IT Management: ASUS Control Center Express

BIOS:

  • 256 Mb Flash ROM, UEFI AMI BIOS

Included Accessories:

  • 1 x DisplayPort cable

  • 2 x SATA cables

  • M.2 accessories (screws, rubber pads)

  • 1 x Q-Connector

  • 1 x ProArt ruler

  • Documentation

OS Compatibility:

  • Windows® 11 / 10 (64-bit)

View full details
