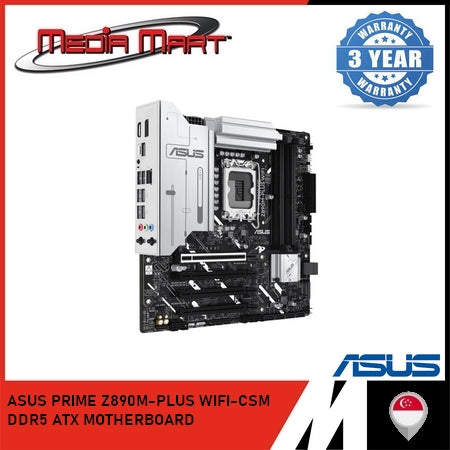

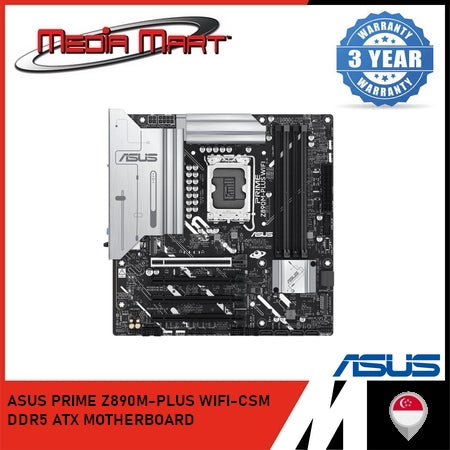

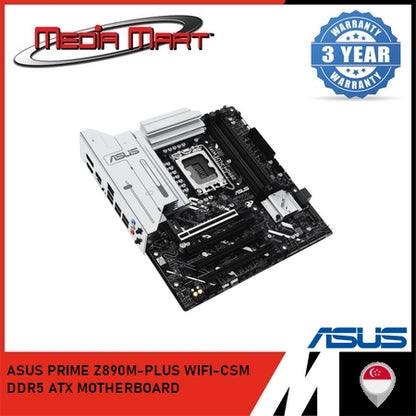

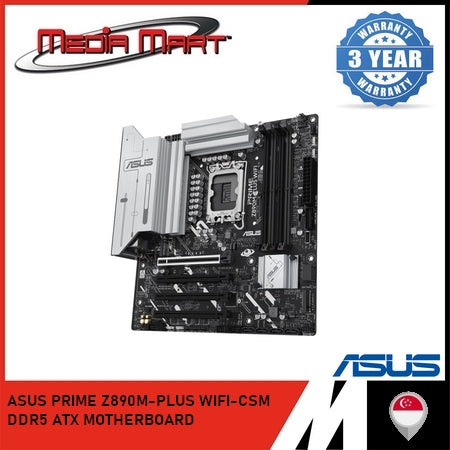

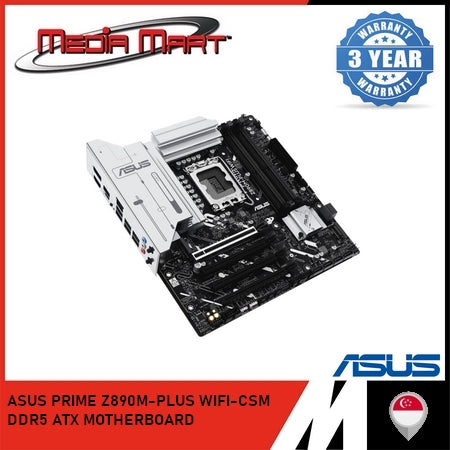

ASUS PRIME Z890M-PLUS WIFI-CSM GAMING MOTHERBOARD

🛠 Chipset & CPU Support:
Model: PRIME Z890M-PLUS WIFI-CSM
Chipset: Intel® Z890 Chipset
CPU Support: Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Overclocked: Up to 8666+ MT/s (OC)
Supports Dual-Channel, Non-ECC, Un-buffered memory, XMP, ASUS AEMP III, CUDIMM
🎮 Graphics & Display:
1x DisplayPort 1.4: Up to 4K @ 60Hz
1x HDMI™ 2.1: Up to 4K @ 60Hz
1x USB 20Gbps Type-C®: Supports DisplayPort video output (up to 4K@120Hz)
🔌 Expansion Slots:
From CPU:
1x PCIe 5.0 x16 slot
From Chipset:
1x PCIe 4.0 x16 slot (x4 mode)
2x PCIe 4.0 x16 slots (x1 mode)
💽 Storage Support:
M.2 Slots:
M.2_1 (CPU): PCIe 5.0 x4, 2280
M.2_2 (Chipset): PCIe 4.0 x4, 2280
M.2_3 (Chipset): PCIe 4.0 x4, 2280
SATA Ports:
6x SATA 6Gb/s
RAID Support:
Intel® Rapid Storage Technology supports RAID 0/1/5/10 (M.2 CPU only supports RAID 0/1/5)
🎧 Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
⚡ USB Connectivity:

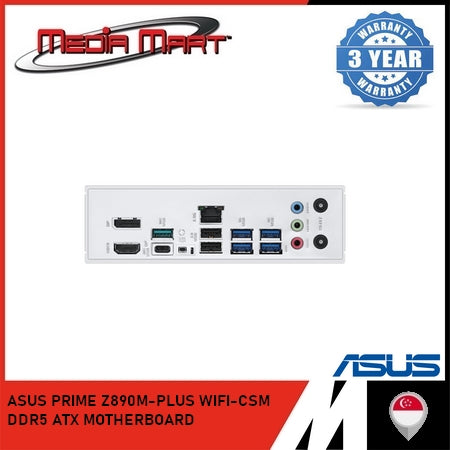

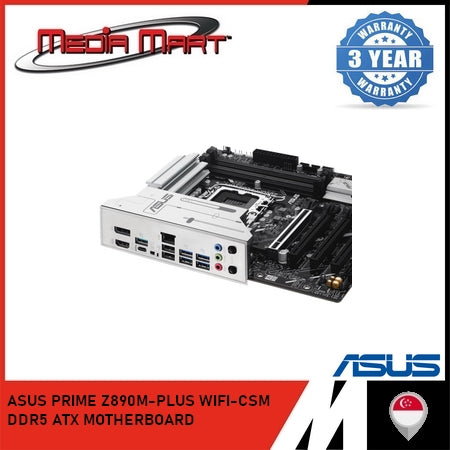

Rear:
1x USB 20Gbps (Type-C® with DP Alt mode)
1x USB 10Gbps (Type-A)
4x USB 5Gbps (Type-A)
2x USB 2.0 (Type-A)
Front:
1x USB 5Gbps connector (USB Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
🌐 Networking:
LAN: Realtek 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 2.9Gbps
Bluetooth: v5.4
🔧 Internal Connectors:
Power:
1x 24-pin ATX_PWR
1x 8-pin CPU_PWR
1x 4-pin CPU_PWR
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
4x Chassis Fan
Storage:
3x M.2 Slots
6x SATA 6Gb/s
USB:
1x USB 5Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable RGB Gen2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header
1x S/PDIF Out header
1x SPI TPM header (14-1 pin)
1x 10-1 pin Front Panel header
1x Thunderbolt™ (USB4®) header
🔆 LED & Special Features:
ASUS 5X Protection III:
DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O
ASUS Q-Design:
Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot, Q-Dashboard
Thermal:
VRM heatsink design
DIY Features:
BIOS FlashBack™ button & LED, Pre-mounted I/O shield, ProCool
Aura Sync:
Aura RGB header, Addressable Gen2 headers

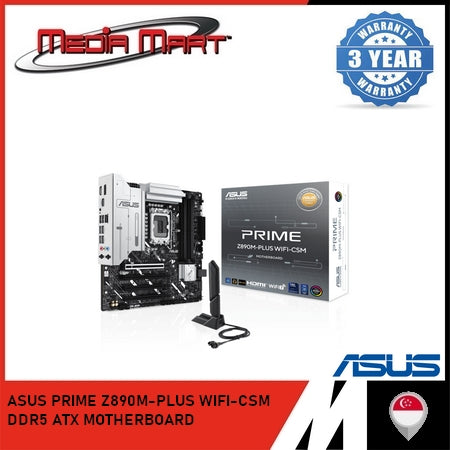

📦 Included Accessories:
ASUS WiFi Q-Antenna
2x SATA 6Gb/s cables
3x M.2 SSD screw packages
ACC Express activation key card
Quick start guide
🖥 Operating System:
Support for Windows® 11 (22H2 & later)
📦 Package Dimensions & Form Factor:
Form Factor: mATX (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm)
