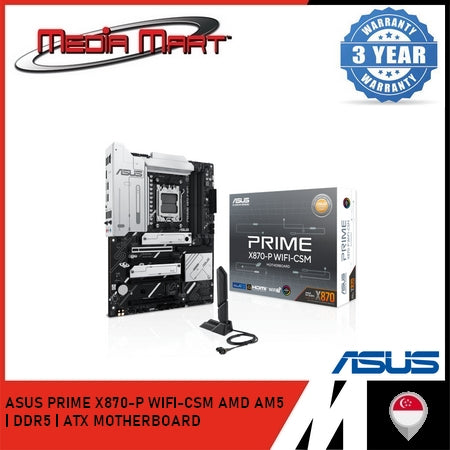

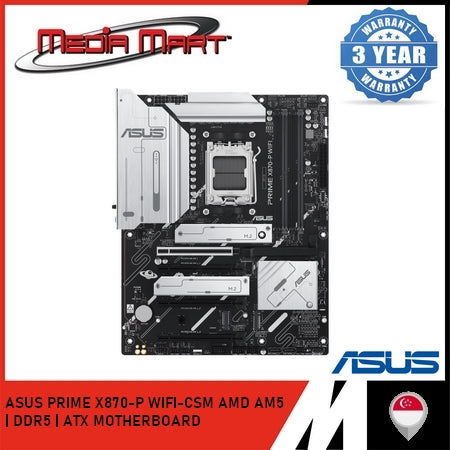

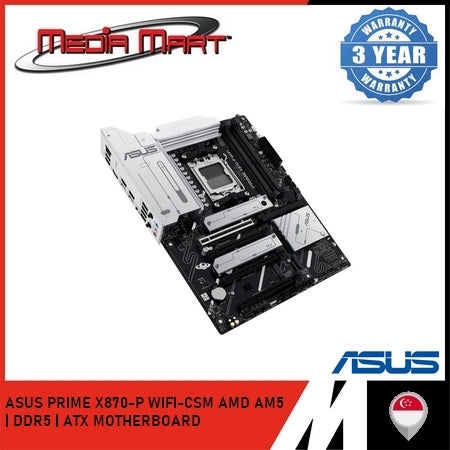

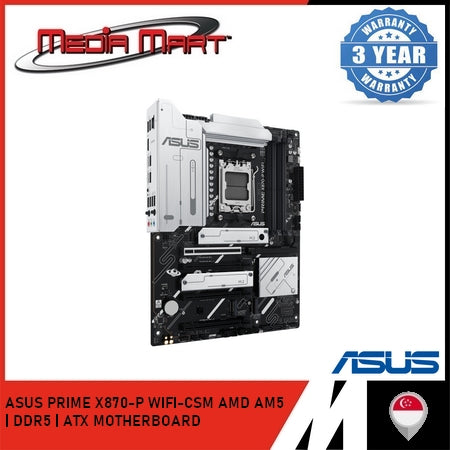

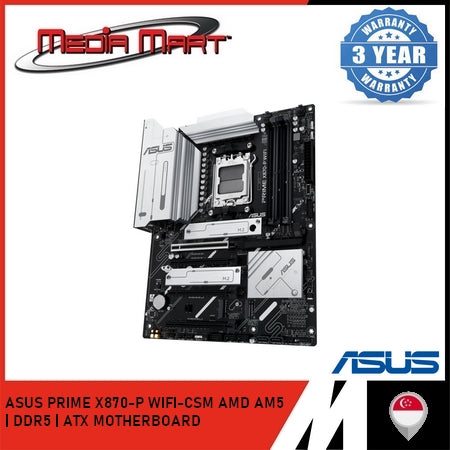

ASUS PRIME X870-P WIFI-CSM AMD AM5 | DDR5 | ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: PRIME X870-P WIFI-CSM
Chipset: AMD X870
CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000 & 7000 Series
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP
*Non-ECC Un-buffered DDR5 supports On-Die ECC
🎮 Graphics & Display:
1x HDMI™ port (4K @ 60Hz via HDMI 2.1)
2x USB4® (40Gbps, Type-C®) with DisplayPort 1.4a Alt Mode (up to 4K @ 60Hz)*
*Display output support varies by CPU. USB-C to DP adapter required for DisplayPort over USB4.
🔌 Expansion Slots:
With Ryzen™ 9000 & 7000:
1x PCIe 5.0 x16 (x16 mode)
With Ryzen™ 8000:
1x PCIe 4.0 x16 (x8/x4 mode)
From Chipset:
3x PCIe 4.0 x16 (x1 mode)*
*Some slots share bandwidth with M.2 slots and may be disabled depending on configuration.
💽 Storage Support:
4x M.2 slots:
Ryzen™ 9000/7000: M.2_1 PCIe 5.0 x4
Ryzen™ 8000: M.2_1 PCIe 4.0 x4
M.2_2, M.2_3: PCIe 4.0 x4
M.2_4: PCIe 3.0 x2
2x SATA 6Gb/s (disabled when M.2_4 runs)
RAID Support:
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
Ryzen™ 7000: RAID 0/1/10
🎧 Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Jack detection, Multi-streaming, Front Panel Jack-retasking
Up to 24-bit/192 kHz playback
Audio Features:
Audio Shielding, Premium Capacitors, Dedicated PCB Layers
⚡ USB Connectivity:

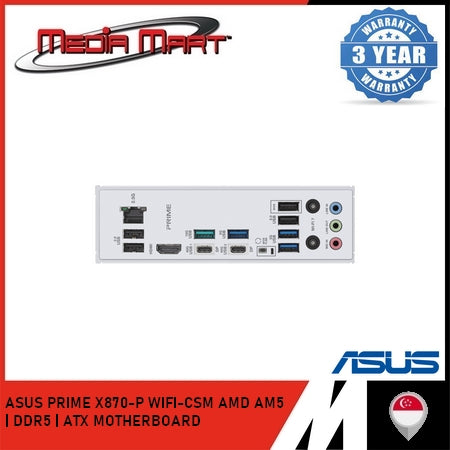

Rear:
2x USB4® (40Gbps, Type-C®)
1x USB 10Gbps (Type-A)
3x USB 5Gbps (Type-A)
4x USB 2.0 (Type-A)
Front:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
🌐 Networking:
LAN:
1x Realtek 2.5Gb Ethernet
Wi-Fi:
Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz
Bluetooth: v5.4
*Wi-Fi 7 requires Windows 11 24H2 or later for full support.
🔧 Internal Connectors:
Power:
1x 24-pin ATX
2x 8-pin +12V CPU
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
4x Chassis Fan
Storage:
4x M.2 Slots
2x SATA
USB:
1x USB 10Gbps (Type-C®)
1x USB 5Gbps header (2 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable Gen2 headers
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header
1x S/PDIF Out header
1x SPI TPM header
1x 10-1 pin System Panel header
🔆 LED & Special Features:
ASUS Q-Design:
M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-LED Core, Q-DIMM, Q-Slot
Thermal Solutions:
Flexible M.2 heatsink, VRM heatsink design
DIY Tools:
BIOS FlashBack™, BIOS FlashBack™ LED, Pre-mounted I/O shield, ProCool
Protection & Durability:
DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O
Aura Sync:
Addressable Gen2 RGB headers
🧰 Software Features:
ASUS Exclusive:
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (AI Cooling II), ASUS DriverHub, GlideX, TurboV Core, ASUS CPU-Z
Bundled Software:
Norton 360 (60-day trial), WinRAR (40-day trial)
UEFI BIOS:
EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey
Remote Management:
ASUS Control Center Express (ACCE)
📦 Included Accessories:
WiFi Q-Antenna
2x SATA 6Gb/s cables
M.2 rubber package
2x Screw packages for M.2 SSD
Quick Start Guide
ACC Express Activation Key Card
🖥 Operating System:
Support for Windows® 11 (Full functions on 24H2 or later)
📐 Package Dimensions & Form Factor:
Form Factor: ATX (12 x 9.6 in / 30.5 x 24.4 cm)
