Socket: AM5, supports Ryzen™ 9000/8000/7000 Series CPUs
-
Chipset: AMD X870E
-
Memory Support: 4x DDR5 DIMM, up to 8200+ MHz (OC), max 256GB
-
Form Factor: E-ATX (30.5 x 26.7 cm)
-
Graphics Support: Integrated AMD RDNA™ (via compatible CPUs)
-
Expansion Slots: 2x PCIe 5.0 x16, 1x M.2 (Key E for WiFi/BT)
-
M.2 Storage: 1x Gen5x4, 3x Gen4x4
-
SATA: 6x SATA3 6Gb/s
-
LAN: Realtek 5G LAN (RTL8126)
-
Wi-Fi: WiFi 7 (802.11be), Bluetooth 5.4
-
USB Ports:
-

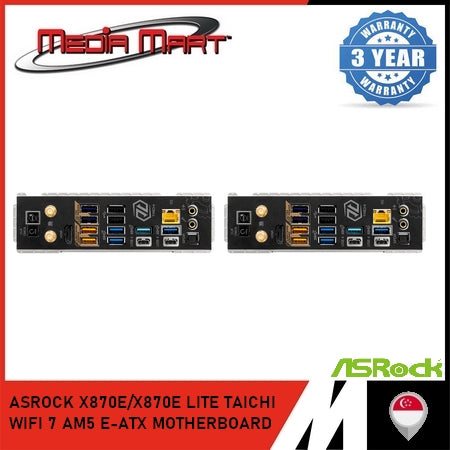

Rear I/O: 2x USB4 Type-C, 5x USB 3.2 Gen2, 3x USB 3.2 Gen1, 2x USB 2.0
-
Front: USB 3.2 Gen2x2 Type-C, 4x USB 3.2 Gen1, 4x USB 2.0
-
Audio: Realtek ALC4082, ESS SABRE9219 DAC, WIMA capacitors, Nahimic Audio
-
Display Output: 1x HDMI 2.1, 2x USB4 (Display-capable via supported CPUs)
-
BIOS Features: BIOS Flashback, Instant Flash, Auto Driver Installer
-
RGB: 1x RGB Header, 3x Addressable RGB Headers
-
Power Phase: 24+2+1 Phase (110A SPS)
-
Cooling Support: 2x CPU fan, 4x chassis fan, 1x AIO pump, 1x water pump
-
Included Accessories:
-
4x SATA cables
-
1x ARGB splitter
-
3x Thermistor cables
-
1x WiFi Antenna
-
OS Compatibility: Windows® 10/11 64-bit
-
Certifications: FCC, CE, ErP/EuP Ready
