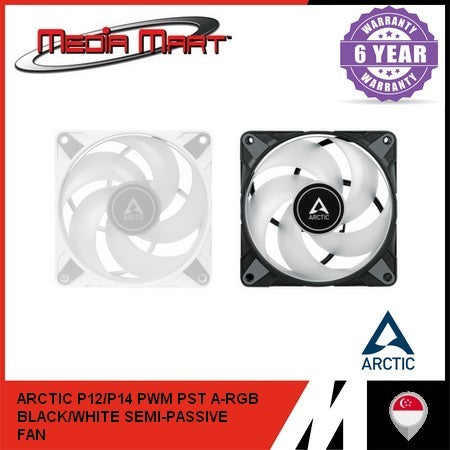

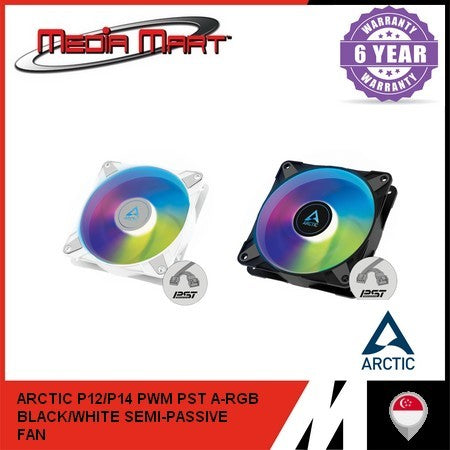

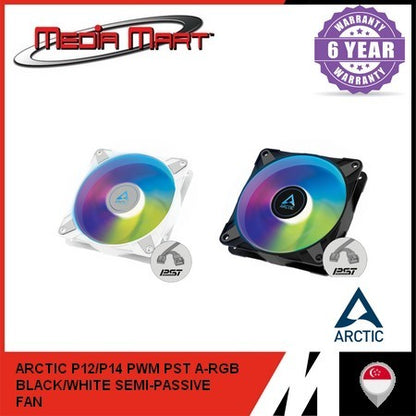

ARCTIC P14 P12 F14 P8 - MAX / PST PWM / SLIM /ARGB | BLACK/WHITE PRESSURE OPTIMISED AIRFLOW CASE FAN

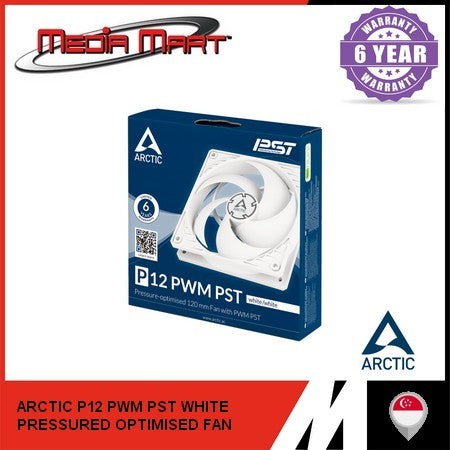

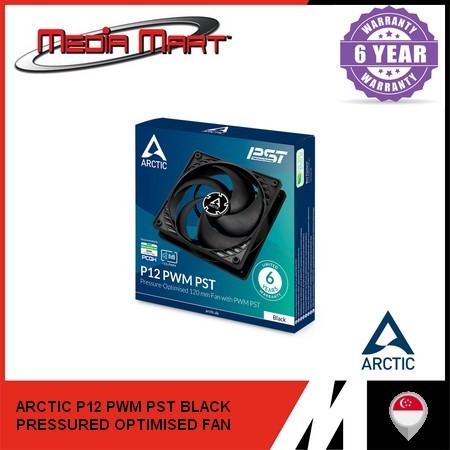

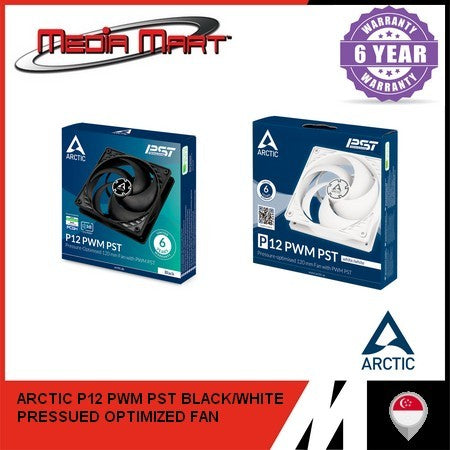

Arctic P12 PWM PST (Black/White)

• Dimensions: 120 x 120 x 25 mm

• Fan Speed: 200–1800 RPM (PWM controlled, 0 RPM below 5% PWM)

• Airflow: 56.3 CFM | 95.7 m³/h

• Static Pressure: 2.20 mmH₂O

• Noise Level: 0.3 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector + 4-Pin Socket (PWM Sharing Technology)

• Voltage: 12 V DC

• Starting Voltage: 3.9 V

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

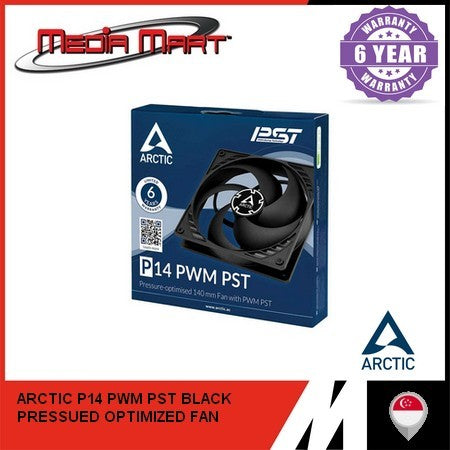

Arctic P14 PWM PST (Black)

• Dimensions: 140 x 140 x 27 mm

• Fan Speed: 200–1700 RPM (PWM controlled, 0 RPM below 5% PWM)

• Airflow: 72.8 CFM | 123.76 m³/h

• Static Pressure: 2.40 mmH₂O

• Noise Level: 0.3 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector + 4-Pin Socket (PWM Sharing Technology)

• Voltage: 12 V DC

• Starting Voltage: 3.9 V

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

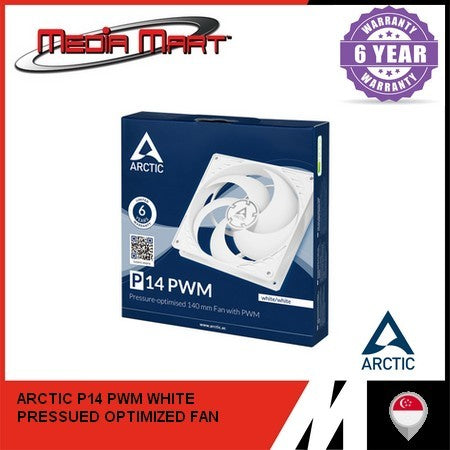

Arctic P14 PWM (White)

• Dimensions: 140 x 140 x 27 mm

• Fan Speed: 200–1700 RPM (PWM controlled, 0 RPM below 5% PWM)

• Airflow: 72.8 CFM | 123.76 m³/h

• Static Pressure: 2.40 mmH₂O

• Noise Level: 0.3 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector

• Voltage: 12 V DC

• Starting Voltage: 3.9 V

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

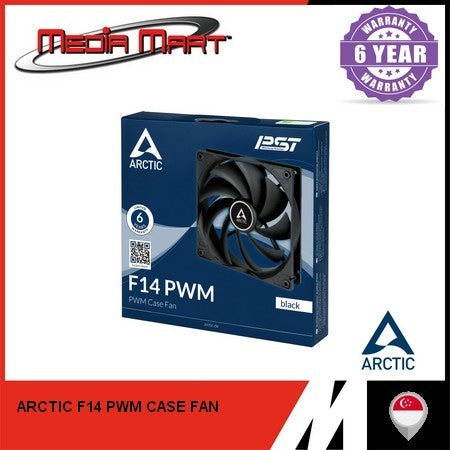

Arctic F14 PWM (Black)

• Dimensions: 140 x 140 x 27 mm

• Fan Speed: 200–1350 RPM

• Airflow: 74 CFM | 126 m³/h

• Static Pressure: 1.6 mmH₂O

• Noise Level: 0.3 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector

• Voltage: 12 V DC

• Starting Voltage: 6 V

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

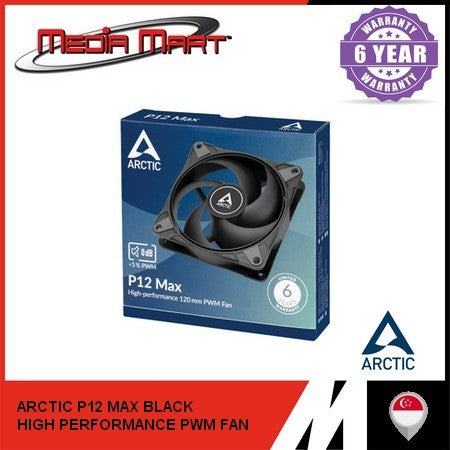

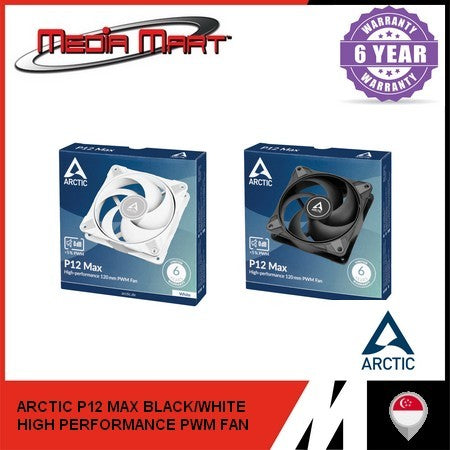

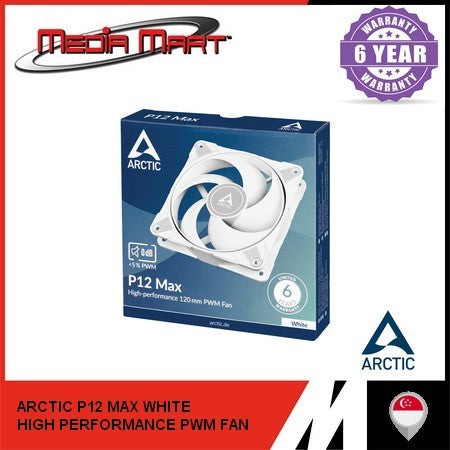

Arctic P12 Max (Black/White)

• Dimensions: 120 x 120 x 25 mm

• Fan Speed: 400–3300 RPM (PWM controlled, 0 RPM below 2% PWM)

• Airflow: 81.04 CFM | 137.69 m³/h

• Static Pressure: 4.35 mmH₂O

• Noise Level: 0.6 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector

• Voltage: 12 V DC

• Starting Voltage: 3.9 V

• Current: 0.29 A

• Cable Length: 400 mm

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

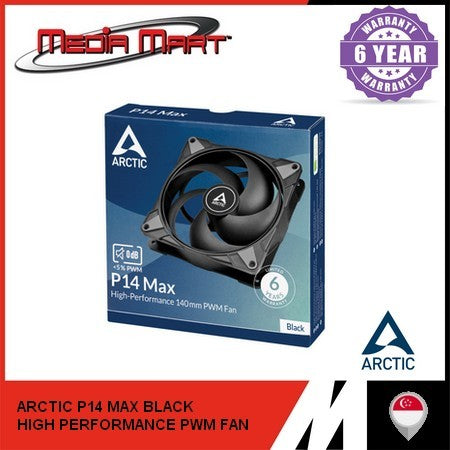

Arctic P14 Max (Black)

• Dimensions: 140 x 140 x 27 mm

• Fan Speed: 400–2800 RPM (PWM controlled, 0 RPM below 3% PWM)

• Airflow: 95.00 CFM | 161.40 m³/h

• Static Pressure: 4.18 mmH₂O

• Noise Level: 0.6 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector

• Voltage: 12 V DC

• Starting Voltage: 3.9 V

• Current: 0.35 A

• Cable Length: 400 mm

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

Arctic F8 PWM PST (Black)

• Dimensions: 80 x 80 x 25 mm

• Fan Speed: 300–2000 RPM (PWM controlled)

• Airflow: 31 CFM | 52.7 m³/h

• Static Pressure: 1.0 mmH₂O

• Noise Level: 0.3 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector + 4-Pin Socket (PWM Sharing Technology)

• Voltage: 12 V DC

• Starting Voltage: 3.9 V

• Current: 0.14 A

• Cable Length: 400 mm

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

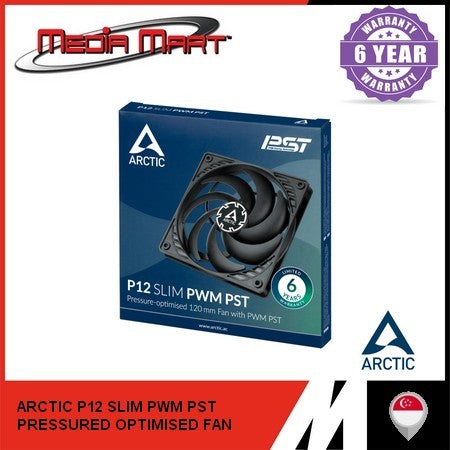

Arctic P12 Slim PWM PST (Black)

• Dimensions: 120 x 120 x 15 mm

• Fan Speed: 200–2100 RPM (PWM controlled, 0 RPM below 9% PWM)

• Airflow: 34.51 CFM | 58.62 m³/h

• Static Pressure: 1.33 mmH₂O

• Noise Level: 0.3 Sone

• Bearing: Fluid Dynamic Bearing

• Connector: 4-Pin Connector + 4-Pin Socket (PWM Sharing Technology)

• Voltage: 12 V DC

• Starting Voltage: 5 V

• Current: 0.12 A

• Cable Length: 400 mm

• Operating Temperature: 0–40 °C

• Warranty: 6 Years

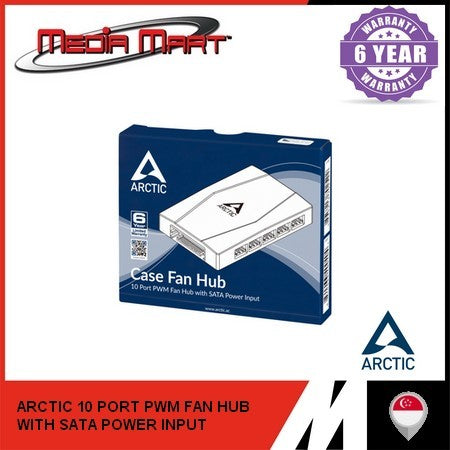

Arctic 10-Port PWM Fan Hub

• Compatibility: Supports up to 10 PWM fans

• Connector: 1 x 4-Pin PWM input, 10 x 4-Pin PWM outputs

• Power Supply: SATA power connector for additional power

• Dimensions: [Dimensions not specified]

• Mounting: Includes adhesive pad for easy installation

• Warranty: 6 Years
