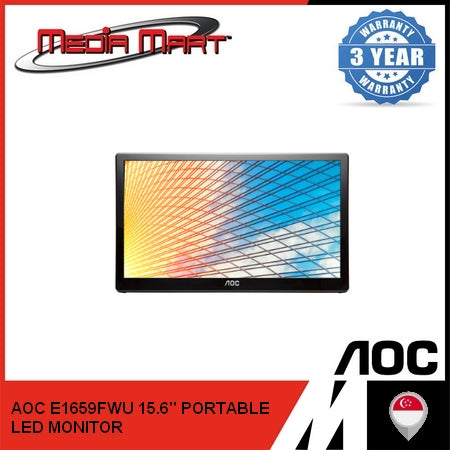

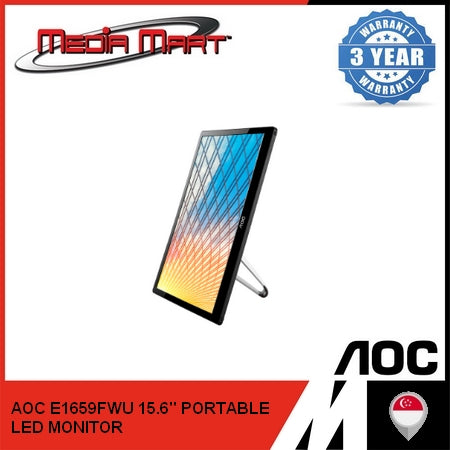

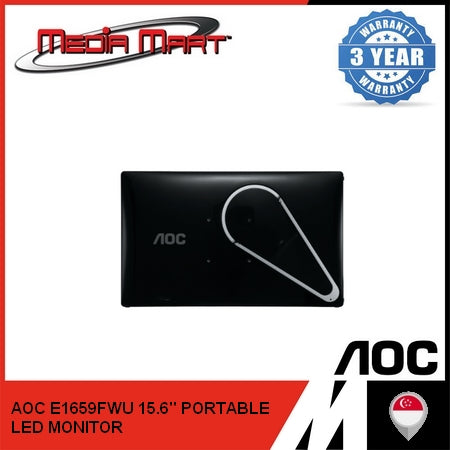

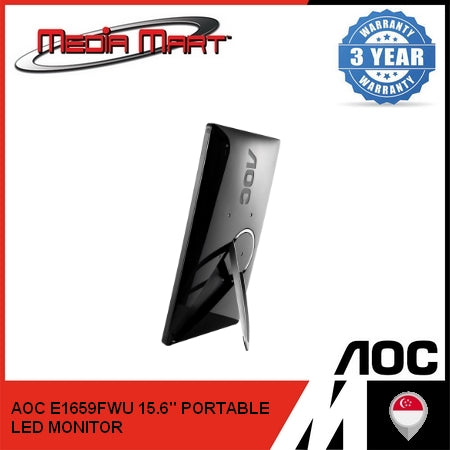

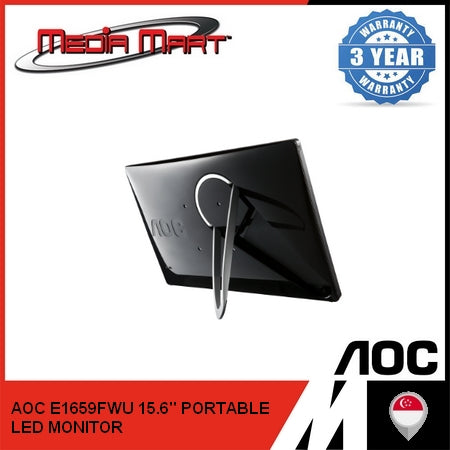

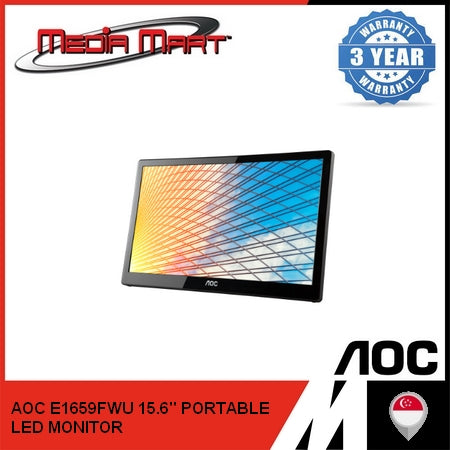

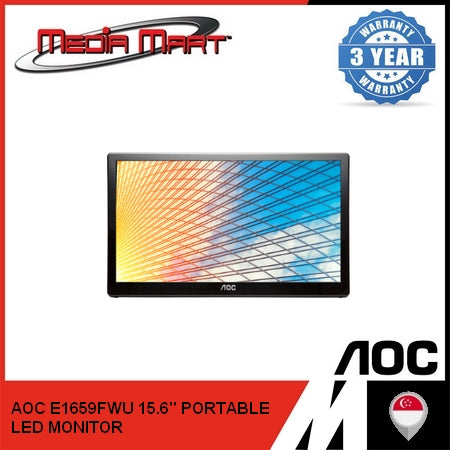

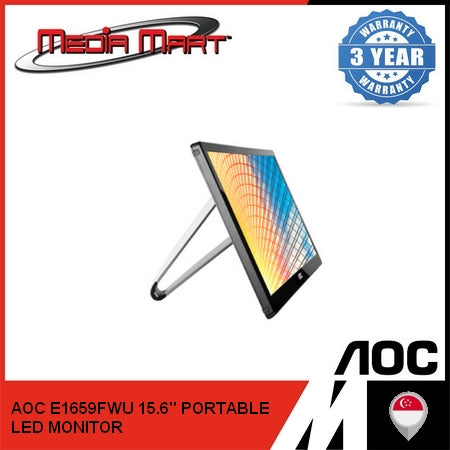

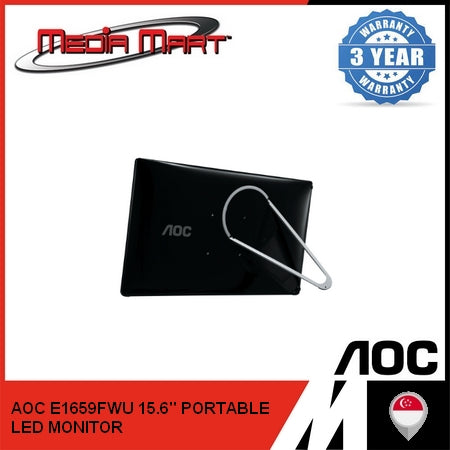

AOC E1659FWU 15.6" PORTABLE LED MONITOR 60HZ REFRESH RATE

Model E1659FWU – Monitor Specifications

General Information

• Model Name: E1659FWU

• EAN: 4717385941687

• Panel Size: 15.6"

• Resolution: 1366 × 768 @ 60Hz

• Pixel Pitch: 0.252 mm (H) × 0.252 mm (V)

• Effective Viewing Area: 344.232 mm (H) × 193.536 mm (V)

• Display Colors: 262K

• Color Gamut: Not specified

• Color Accuracy: Not specified

Display Performance

• Brightness (Typical): 200 cd/m²

• Contrast Ratio: 500:1 (Typical)

• Response Time: 8ms

• Viewing Angle: 90° (H) / 50° (V) (CR ≥ 10)

Connectivity

• Signal Input: USB 3.0

• HDCP Version: Not specified

• USB Hub: Not included

• Audio: Not available

Power

• Power Supply: USB-powered (5V via PC)

• Power Consumption:

  • Operating: <8W (max.)

  • Standby: <1W

Design & Dimensions

• Wall Mounting: 75 mm × 75 mm (VESA compatible)

• Adjustable Stand: Tilt +15° to +30°

• Dimensions with Stand (W × H × D): 371.9 × 232.7 × 22.9 mm

• Weight with Stand: 1.2 kg

• Cabinet Color: Black

Certifications & Compliance

• Regulatory Approvals:
  CE, FCC, cTUVus, TUV-S, C-Tick, KCC, VCCI, J-Moss, e-Standby, BSMI, EPA6.0, Windows 8, RoHS
