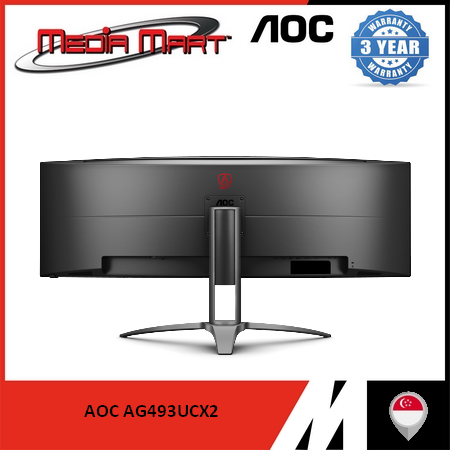

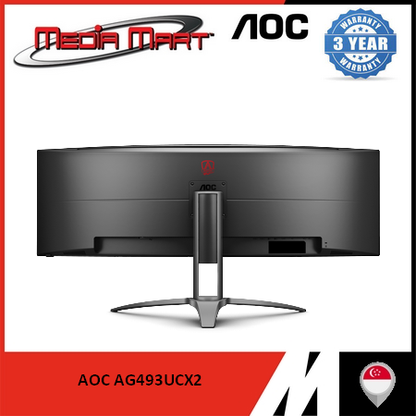

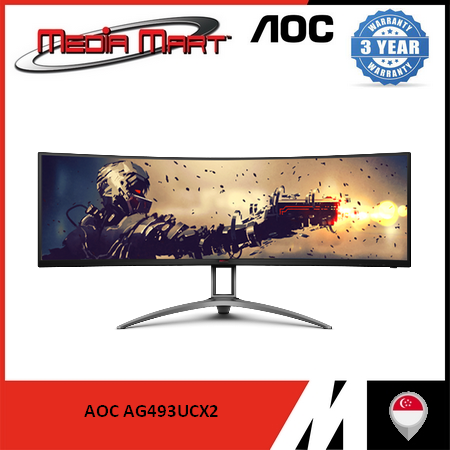

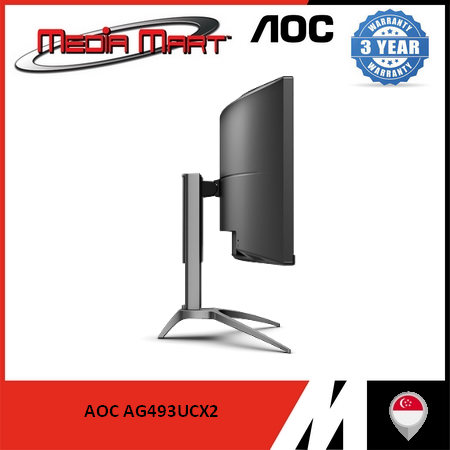

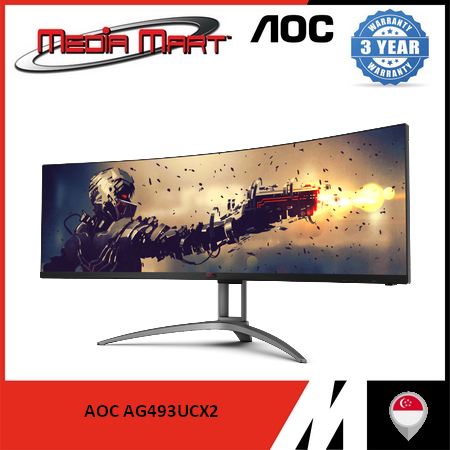

AOC AG493UCX2 49" DQHA VA CURVE SUPERWIDE 165HZ GAMING MONITOR

Display Features

• Screen Size: 49"

• Panel Type: VA / 1800R Curved

• Pixel Pitch: 0.2331 mm (H) × 0.2331 mm (V)

• Effective Viewing Area: 1191.936 mm (H) × 335.232 mm (V)

• Brightness: 550 cd/m² (Typical)

• Contrast Ratio:

  • 3000:1 (Typical)

  • 80 Million:1 (Dynamic Contrast Ratio)

• Response Time:

  • 4ms (OD)

  • 1ms (MPRT)

• Viewing Angle: 178° (H) / 178° (V) (CR > 10)

• Color Gamut:

  • NTSC 100% (CIE1976)

  • sRGB 121% (CIE1931)

  • DCI-P3 91% (CIE1976)

• Display Colors: 16.7 Million

Resolution & Refresh Rate

• Optimal Resolution:

  • 5120 × 1440 @ 165Hz (DisplayPort 1.4)

  • 5120 × 1440 @ 75Hz (HDMI 2.0)

  • 5120 × 1440 @ 120Hz (USB-C)

Connectivity

• HDMI Ports: 3 × HDMI 2.0 (HDR)

• DisplayPort: 1 × DisplayPort 1.4 (HDR)

• USB-C: 1 × USB-C (DP Alt)

• USB Hub: 3 × USB 3.2 Gen 1

• Audio: Earphone Jack

• Speakers: 5W x 2

Ergonomics & Design

• Stand Adjustments:

  • Height: 100 mm

  • Swivel: -15.5° ~ 15.5°

  • Tilt: -5° ~ 15°

• VESA Wall Mount: 100mm × 100mm

• Cabinet Color: Black & Grey

• Bezel Design: Curved with a sleek finish

Dimensions & Weight

• Without Stand (H × W × D): 369.4 mm × 1194.4 mm × 153.24 mm

• With Stand (H × W × D): 467.6~567.6 mm × 1194.4 mm × 308.0 mm

• Weight (Without Stand): 10.9 kg

• Weight (With Stand): 14.4 kg

Power

• Power Supply: 100 - 240V ~ 3A, 50 / 60Hz

• Power Consumption (Typical): 68W

Regulatory Approvals

• Certifications: BSMI, CE, CB, FCC
