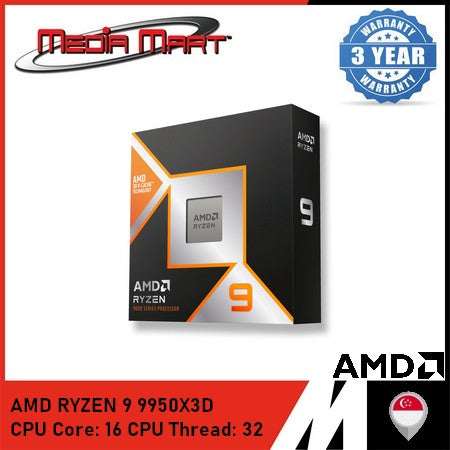

AMD RYZEN 9 9950X3D 16 CORES / 32 THREAD 5.7 GHZ AM5 SOCKET

Processor Specifications

• Name: AMD Ryzen™ 9 9950X3D
• Family: Ryzen
• Series: Ryzen 9000 Series
• Form Factor: Desktop, Boxed Processor
• Market Segment: Enthusiast Desktop
• AMD PRO Technologies: No
• Regional Availability: Global
• Former Codename: Granite Ridge AM5
• Architecture: Zen 5

Core & Thread Configuration

• Total CPU Cores: 16
• Multithreading (SMT): Yes
• Total Threads: 32

Clock Speeds

• Max Boost Clock: Up to 5.7 GHz
• Base Clock: 4.3 GHz

Cache

• L1 Cache: 1280 KB
• L2 Cache: 16 MB
• L3 Cache: 128 MB

Power & Cooling

• Default TDP: 170W
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max Operating Temperature (Tjmax): 95°C

Manufacturing Process

• Processor Technology for CPU Cores: TSMC 4nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Package Die Count: 3

Overclocking & Performance Features

• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Boost Technology: Precision Boost 2

Socket & Compatibility

• CPU Socket: AM5
• Supporting Chipsets:
  • A620, X670E, X670, B650E, B650
  • X870E, X870, B840, B850

Instruction Set & Extensions

• Instruction Set: x86-64
• Supported Extensions:
  • AES, AVX512, AVX2, AVX, FMA3, MMX-plus
  • SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64

Thermal Solution

• Included Cooler (PIB): Not Included

Operating System Support

• Windows:
  • Windows 11 (64-bit)
  • Windows 10 (64-bit)
• Linux:
  • RHEL x86 (64-bit)
  • Ubuntu x86 (64-bit)

Launch Date

• Release Date: 03/12/2025
