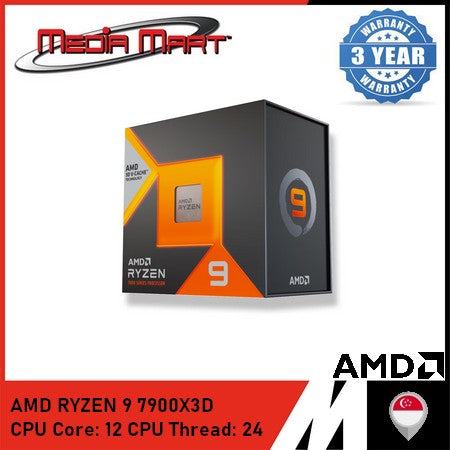

AMD RYZEN 9 7900X3D 12 CORES / 24 THREAD 5.6 GHZ AM5 SOCKET

General Specifications
Name: AMD Ryzen™ 9 7900X3D
Family: Ryzen
Series: Ryzen 7000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Regional Availability: Global
Former Codename: Raphael AM5
Architecture: Zen 4

Core & Thread Configuration
# of CPU Cores: 12
Multithreading (SMT): Yes
# of Threads: 24

Clock Speeds
Max. Boost Clock: Up to 5.6 GHz
Base Clock: 4.4 GHz

Cache
L1 Cache: 768 KB
L2 Cache: 12 MB
L3 Cache: 128 MB

Power & Cooling
Default TDP: 120W
Processor Technology for CPU Cores: TSMC 5nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
CPU Compute Die (CCD) Size: 71mm²
I/O Die (IOD) Size: 122mm²
Package Die Count: 3
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 89°C

Overclocking & Performance Features
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Boost Technology: Precision Boost 2

Socket & Compatibility
CPU Socket: AM5
Supporting Chipsets:

• A620, X670E, X670, B650E, B650
• X870E, X870, B840, B850

Instruction Set & Extensions
Instruction Set: x86-64
Supported Extensions:

• AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus
• SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Operating System Support
Windows:

• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition

Linux:

• RHEL x86 64-Bit
• Ubuntu x86 64-Bit
