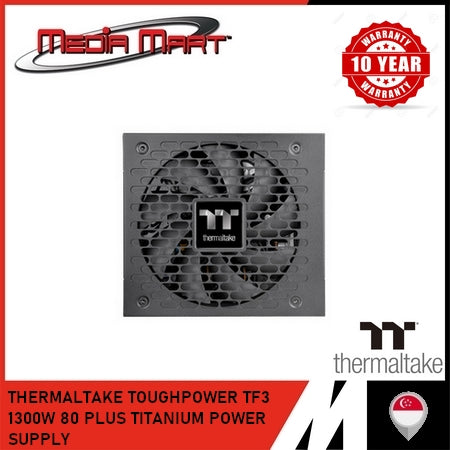

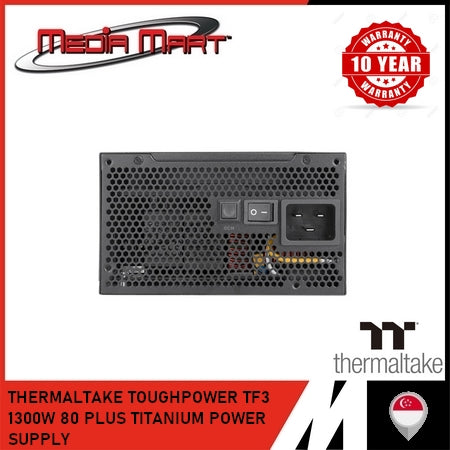

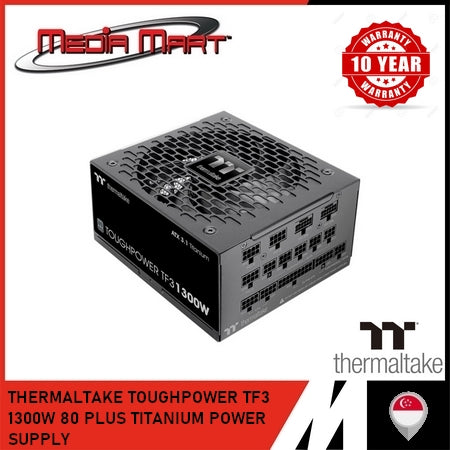

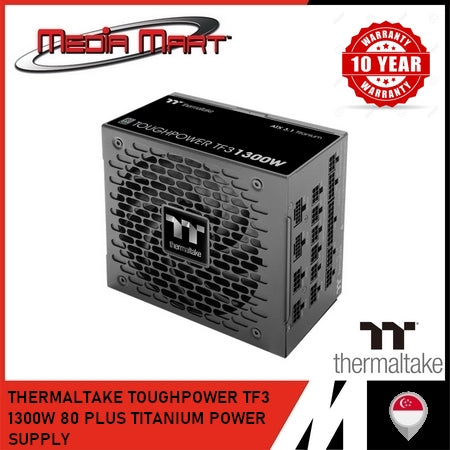

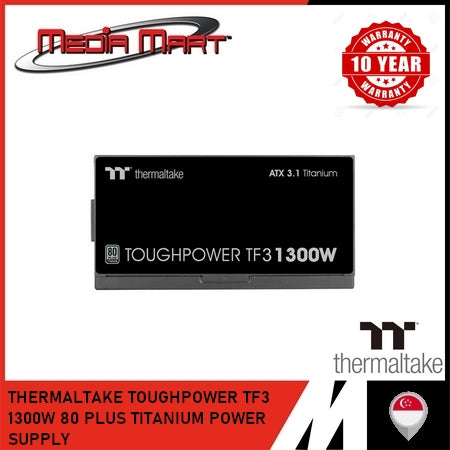

THERMALTAKE TOUGHPOWER TF3 1300W 80 PLUS TITANIUM POWER SUPPLY

Specifications

• Part Number: PS-TPD-1300FNFAT*-1

• Model: TPD-1300AH3FLT

• Max. Output Capacity: 1300W

• Dimensions (W x H x D): 150 x 86 x 165 mm

Electrical Specs:

• PFC: Active PFC

• Power Good Signal: 100–150 ms

• Hold Up Time: >17 ms at 80% load

• Input Current: 20–8A

• Input Voltage: 100–240V~

• Input Frequency Range: 50–60Hz

Environmental Conditions:

• Operating Temperature: +5°C to +50°C

• Operating Humidity: 20% to 85%, non-condensing

• Storage Temperature: -40°C to +55°C

• Storage Humidity: 10% to 95%, non-condensing

Cooling System:

• 14cm Hydraulic Bearing Fan

Efficiency:

• 80 PLUS® Titanium Certified (115V input)

MTBF:

• 100,000 hours minimum

Safety Approvals:

• CE, UKCA, ICES, TUV, LVD, RCM, CB, cTUVus, BSMI, CCC, BIS, S-mark, EAC

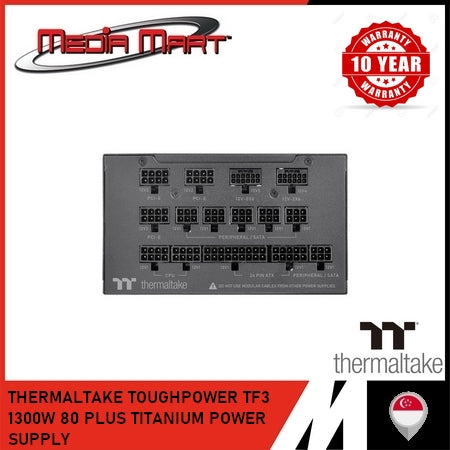

Connectors:

• PCI-E 6+2 pin: 5

• PCI-E 12+4 pin: 2 (600W each)

Protection Features:

• OCP (Over Current Protection)

• OVP (Over Voltage Protection)

• UVP (Under Voltage Protection)

• OPP (Over Power Protection)

• OTP (Over Temperature Protection)

• SCP (Short Circuit Protection)
