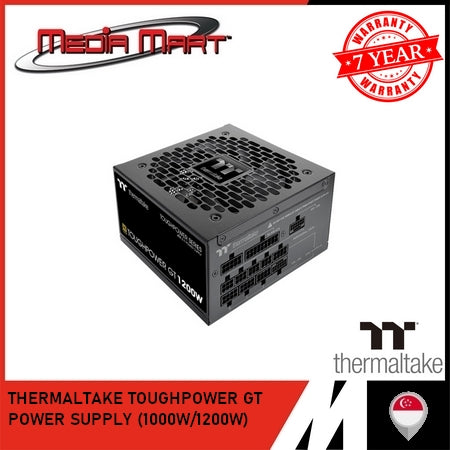

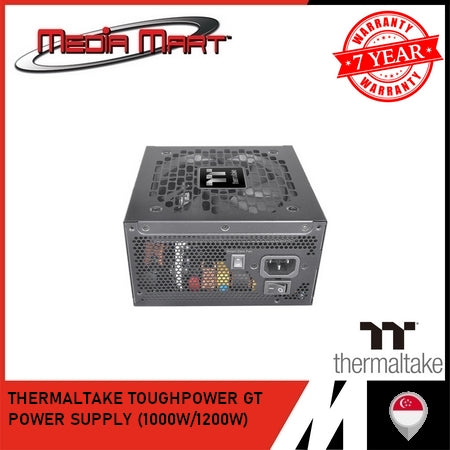

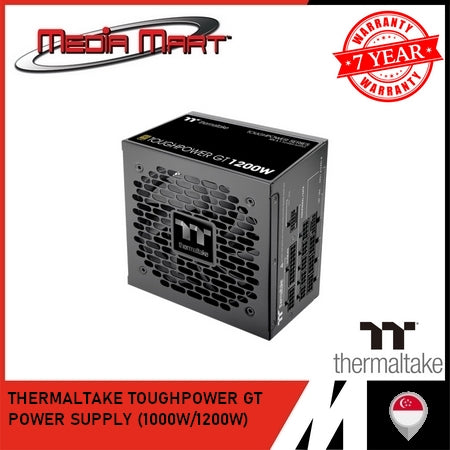

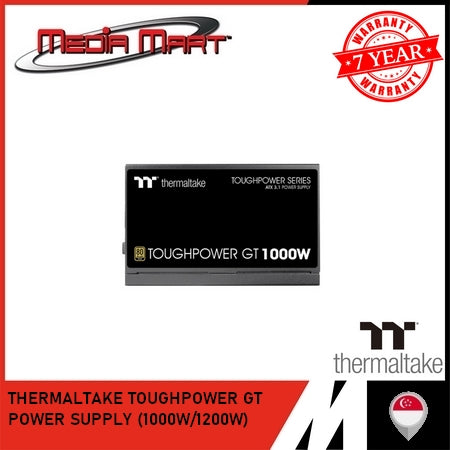

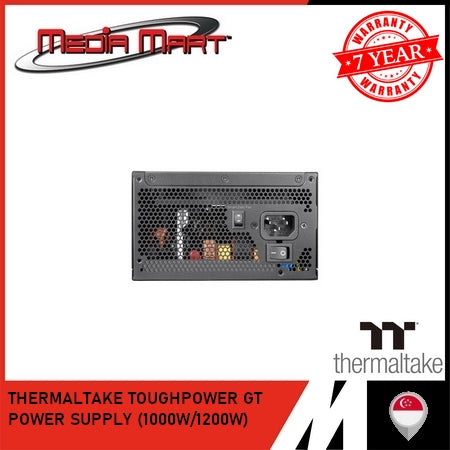

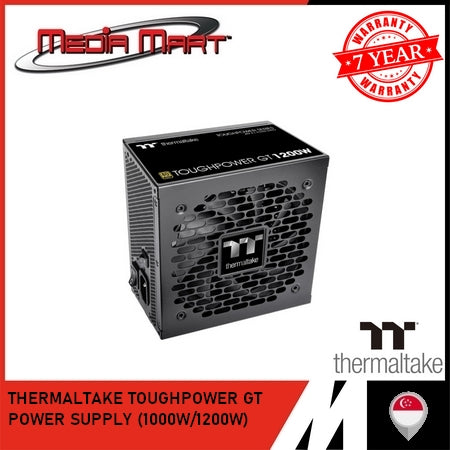

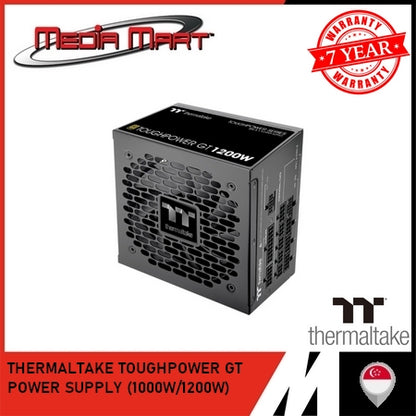

THERMALTAKE TOUGHPOWER GT 80 PLUS GOLD POWER SUPPLY (1000W/1200W)

Specifications

• Part Number: PS-TPT-1000FNFAG*-3

• Model: TPD-1000AH2FXG-3

• Max. Output Capacity: 1000W

• Color: Black

• Dimensions (W x H x D): 150 x 86 x 140 mm

Electrical Specs:

• PFC: Active PFC

• Power Good Signal: 100–250 ms

• Hold Up Time: >17 ms at 80% load

• Input Current: 15–10A

• Input Voltage: 100–240V～

• Input Frequency Range: 50Hz–60Hz

Environmental Conditions:

• Operating Temperature: 0°C to +40°C

• Operating Humidity: 5% to 85%, non-condensing

• Storage Temperature: -40°C to +70°C

Cooling System:

• 12cm Hydraulic Bearing Fan

Efficiency:

• 80 PLUS® Gold Certified (115V input)

MTBF:

• 100,000 hours minimum

Safety Approvals:

• CE, UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S-MARK, EAC

Connectors:

• PCI-E 6+2 pin: 5

• PCI-E 12+4 pin: 1

Protection Features:

• OVP (Over Voltage Protection)

• UVP (Under Voltage Protection)

• OCP (Over Current Protection)

• OPP (Over Power Protection)

• OTP (Over Temperature Protection)

• SCP (Short Circuit Protection)
