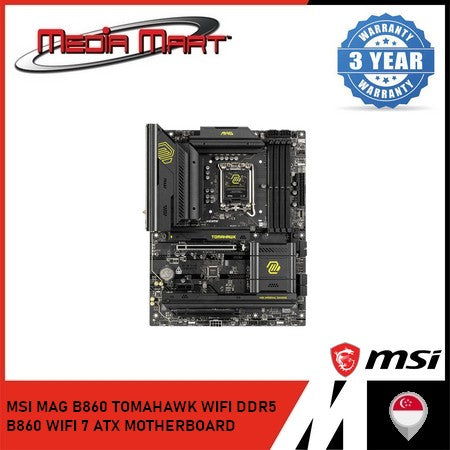

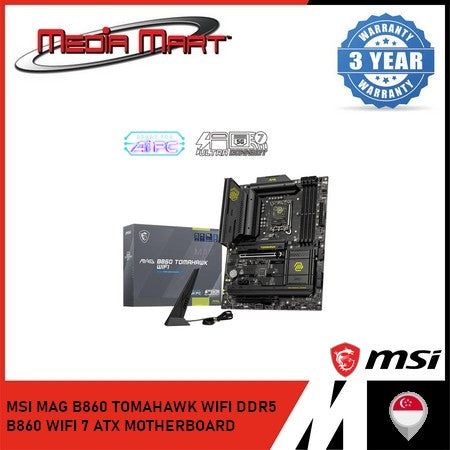

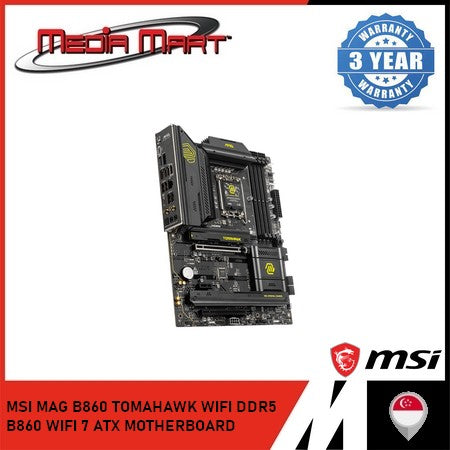

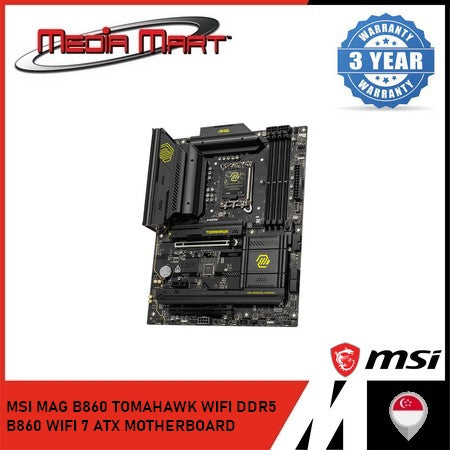

MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 WIFI 7 ATX MOTHERBOARD

🛠 Chipset & CPU Support:

• Chipset: Intel B860

• CPU Support: Intel® Core™ Ultra Processors (Series 2)

• Socket: LGA 1851

💾 Memory Specifications:

• Memory Slots: 4x DDR5 UDIMM, up to 256GB

• Supported Speeds:

  • Overclocked: 9200 - 6400 MT/s

  • JEDEC: 6400 - 4800 MT/s

• Overclocking Frequency:

  • 1DPC 1R: Up to 9200+ MT/s

  • 1DPC 2R: Up to 7200+ MT/s

  • 2DPC 1R: Up to 6400+ MT/s

  • 2DPC 2R: Up to 5600+ MT/s

Supports Intel® XMP 3.0, Non-ECC, Un-buffered memory, CUDIMM

🎮 Graphics & Display:

• 1x HDMI™ 2.1 (FRL): 8K @ 60Hz / 4K @ 120Hz

• 1x DisplayPort 1.4: 4K @ 60Hz

• 1x Type-C DisplayPort (Thunderbolt 4): 4K @ 120Hz / 8K @ 60Hz (UHBR20)

*Available only on CPUs with integrated graphics.

🔌 Expansion Slots:

• PCI_E1 (Gen 5, x16): From CPU

• PCI_E2 (Gen 4, x1): From Chipset

• PCI_E3 (Gen 4, x4): From Chipset

  • PCI_E3 will operate at x2 speed when a PCIe device is installed in PCI_E2.

🎧 Audio:

• Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

• S/PDIF Output

💽 Storage Support:

• M.2 Slots (3x):

  • M.2_1: PCIe 5.0 x4 (CPU) - 2280/2260

  • M.2_2: PCIe 4.0 x4 (Chipset) - 22110/2280/2260

  • M.2_3: PCIe 4.0 x4 (Chipset) - 2280/2260/2242

*If a 22110 SSD is installed in M2_2, M2_3 will only support 2242/2260 SSDs.

• SATA: 4x SATA 6G

*RAID Support for SATA: RAID 0, 1, 5, 10

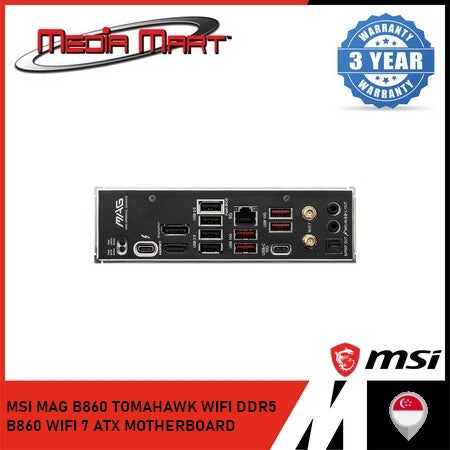

⚡ Thunderbolt & USB Connectivity:

• 1x Thunderbolt™ 4 (40Gbps / Type-C): Supports up to 8K display, Daisy-Chain (3x Thunderbolt 4 / 5x Thunderbolt 3)

• USB Ports:

  • 4x USB 2.0 (Rear)

  • 4x USB 2.0 (Front)

  • 2x USB 5Gbps Type-A (Front)

  • 4x USB 10Gbps Type-A (Rear)

  • 1x USB 10Gbps Type-C (Rear)

  • 1x USB 10Gbps Type-C (Front)

  • 1x USB 40Gbps Type-C (Rear)

🌐 Networking & Wireless:

• LAN: Intel® Killer™ E5000 5Gbps LAN

• Wi-Fi / Bluetooth: Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4

🔧 Internal Connectors:

• 1x ATX Power Connector

• 2x CPU Power Connectors

• 1x PCIe Power Connector (8-pin)

• 1x CPU Fan

• 1x Combo Fan (Pump / Sys Fan)

• 5x System Fan

• 1x Front Audio

• 1x TPM Header (TPM 2.0)

• 3x ARGB V2 Headers

• 2x RGB Headers

🛠 Debugging & Monitoring:

• 4x EZ Debug LED

• 1x EZ Memory Detection LED

📦 Package Dimensions & Form Factor:

• Form Factor: ATX (243.84mm x 304.8mm)
