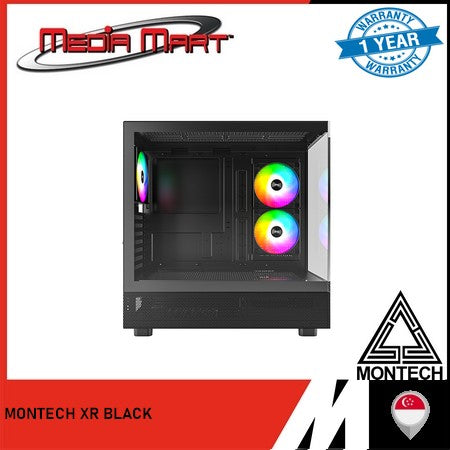

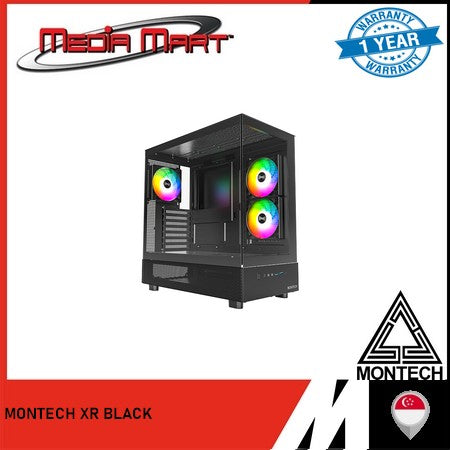

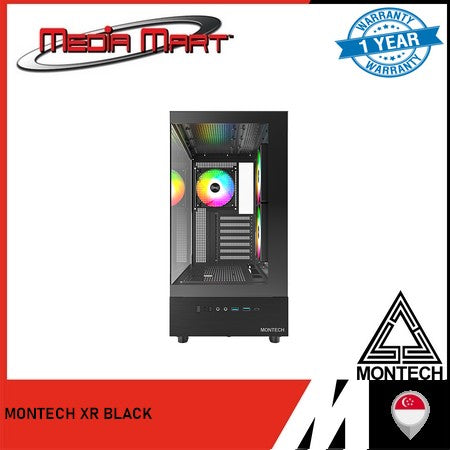

MONTECH XR BLACK/WHITE ATX CASE

MONTECH XR – Mid Tower Case (Black / White)

Model Name
XR

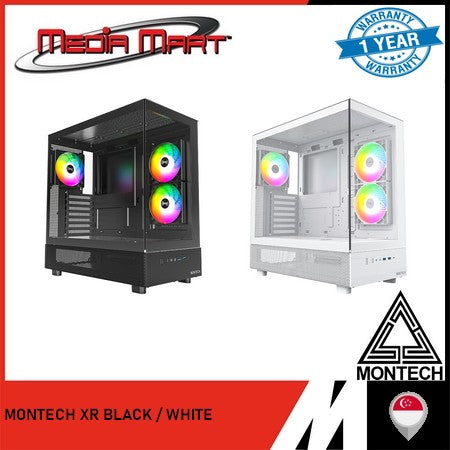

Available Colors

• Black (EAN: 4710562741421)

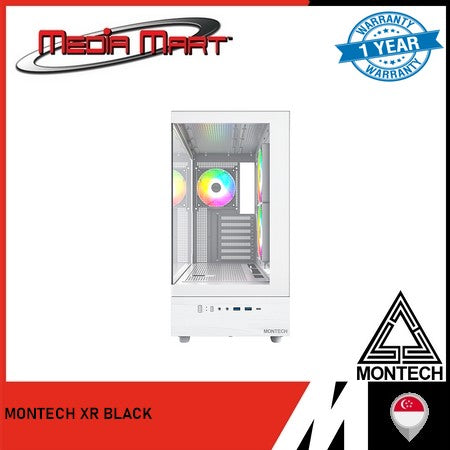

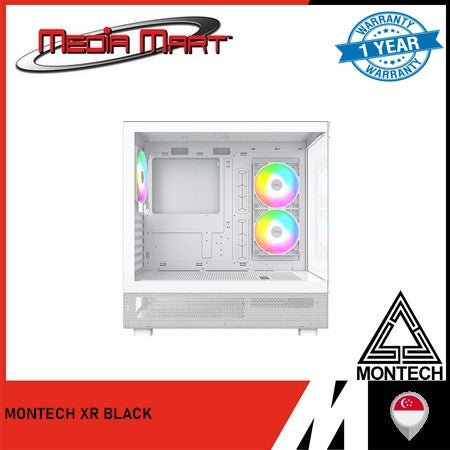

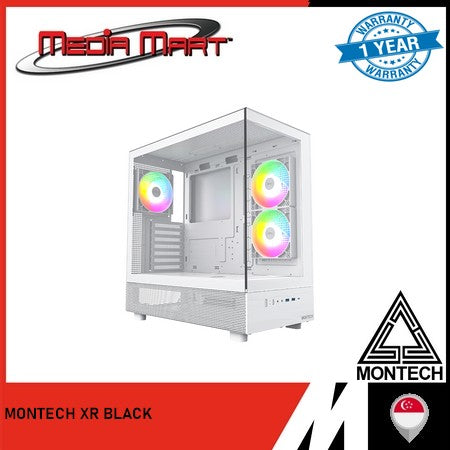

• White (EAN: 4710562741476)

Warranty
1 Year

Chassis Specifications

• Case Dimensions (L × W × H): 450 × 230 × 455 mm

• Carton Dimensions: 525 × 290 × 510 mm

• Motherboard Support:
  ATX / Micro-ATX / Mini-ITX

• PCIe Expansion Slots: 7

• PSU Support: 230mm ATX

Front I/O Panel

• Power Button

• Reset Button

• Mic Jack × 1

• Audio Jack × 1

• USB 3.0 × 2

• USB Type-C × 1

Cooling & Fan Support

Pre-installed Fans

• Side: 2 × 120mm Reversed ARGB PWM Fans

• Rear: 1 × 120mm GF120 ARGB PWM Fan

Additional Fan Support

• Top: 3 × 120mm / 2 × 140mm

• Side: 2 × 120mm

• PSU Shroud: 3 × 120mm

• Rear: 1 × 120mm / 1 × 140mm

Radiator Support

• Top: 120 / 140 / 240 / 360mm

• Rear: 120 / 140mm

Hardware Compatibility

• Maximum GPU Length: 420mm

• Maximum CPU Cooler Height: 175mm

• Maximum PSU Length: 230mm

Storage Options

• 3.5” HDD Bays: Up to 2

• 2.5” SSD Bays: Up to 2

Dust Filters

• Top Filter

• Side Filter

• Bottom Filter
