MONTECH

MONTECH CENTURY II 80+ GOLD PSU 850/1050/1200W FM ATX 3.1 + PCIe 5.1

MONTECH CENTURY II 80+ GOLD PSU 850/1050/1200W FM ATX 3.1 + PCIe 5.1

Regular price $169.00
Regular price Sale price $169.00
Sale Sold out
WATTAGE

Model Name

Century II


Specifications

Feature Description
Wattage 1200W
Form Factor ATX (140mm Length)
Input Voltage 100–240Vac, 50–60Hz, 15A–10A
Operating Temperature 0–50°C
Fan 135mm FDB (Fluid Dynamic Bearing)
Protections OPP / OVP / UVP / SCP / OCP / OTP
Certifications BSMI, CB, CCC, CE, EAC, EMC, FCC&ICES, KC, KCC, LVD, RCM, RoHS2.0, cTUVus, TUV, UKCA
Warranty 10 Years

Power Output

Output Rails +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 100A 0.3A 3A
Max Power 120W 1200W 3.6W 15W
Total Power 1200W

Dimensions

  • Unit Dimensions (L x W x H): 140 × 150 × 86 mm

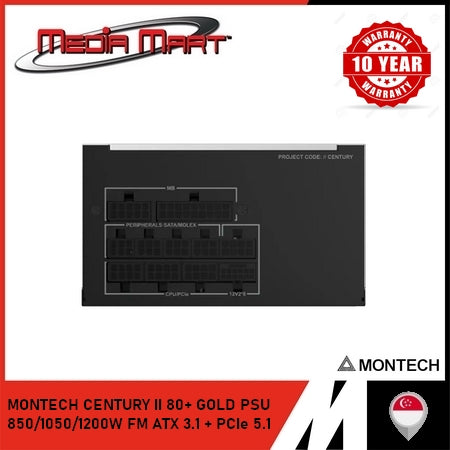

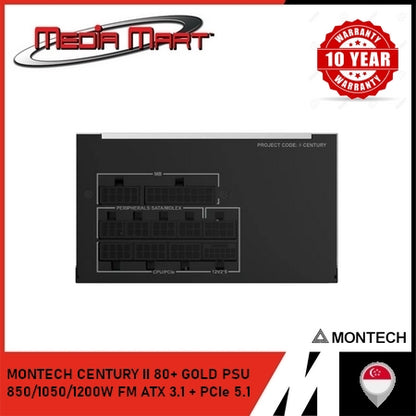

Cables & Connectors

Cable Type Quantity Connectors per Cable
Motherboard 1 1x (20+4 Pin)
CPU 2 1x (4+4 Pin) each
PCIe 3 2x (6+2 Pin) each
12V-2×6 1 1x (16 Pin to 16 Pin)
SATA 3 4x SATA each
Molex 1 4x Molex
