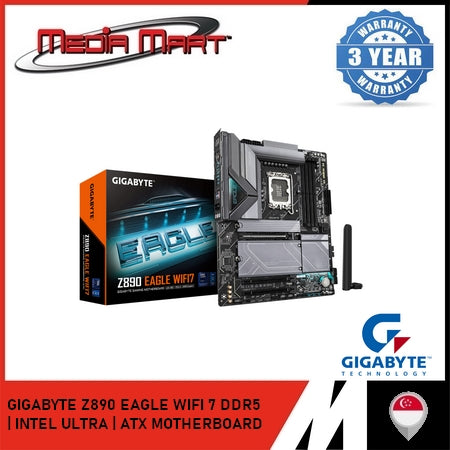

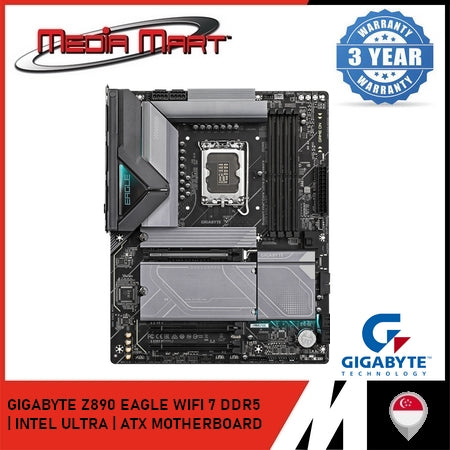

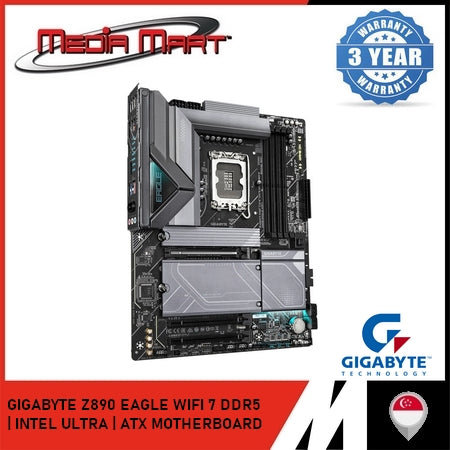

GIGABYTE Z890 EAGLE WIFI 7 LGA 1851 DDR5 ATX MOTHERBOARD

🛠 CHIPSET & CPU SUPPORT

• Chipset: Intel Z890

• Socket: LGA 1851

• CPU Support:

  • Intel® Core™ 15th Gen Processors

  • Intel® Core™ 14th Gen Processors

💾 MEMORY SPECIFICATIONS

• Memory Slots: 4x DDR5 DIMM, up to 192GB

• Supported Speeds:

  • JEDEC: 5600 / 4800 MT/s

  • Overclocked: Up to 8600 MT/s (OC)

• Memory Features: Dual-Channel, Non-ECC, Un-buffered, Intel XMP 3.0

🎮 GRAPHICS & DISPLAY

• Integrated Graphics Support (CPU Dependent):

  • 1x HDMI™ 2.1 FRL: Up to 8K @ 60Hz

  • 1x DisplayPort 1.4: Up to 4K @ 144Hz

🔌 EXPANSION SLOTS

• PCI_E1 (Gen 5, x16): PCIe 5.0 x16 (for GPU)

• PCI_E2 (Gen 5, x4): PCIe 5.0 x4 (for NVMe SSDs or Add-in Cards)

• PCI_E3 (Gen 4, x4): PCIe 4.0 x4 (from Chipset)

🎧 AUDIO

• Audio Codec: Realtek® ALC1220-VB

• High Definition Audio: 7.1-Channel

• SNR: 120dB SNR (Rear), 110dB SNR (Front)

• ESS SABRE DAC: Included

• S/PDIF Output Support: Yes

💽 STORAGE SUPPORT

• M.2 Slots (4x):

  • M.2_1 (CPU): PCIe 5.0 x4 (NVMe SSD)

  • M.2_2 (CPU): PCIe 5.0 x4 (NVMe SSD)

  • M.2_3 (Chipset): PCIe 4.0 x4 (NVMe SSD)

  • M.2_4 (Chipset): PCIe 4.0 x2 / SATA Mode

• SATA Ports: 6x 6Gbps

• RAID Support:

  • SATA: RAID 0, 1, 5, 10

  • NVMe: RAID 0, 1

⚡ USB CONNECTIVITY

• Front Panel:

  • 2x USB 3.2 Gen 2 Type-A

  • 1x USB 3.2 Gen 2x2 Type-C

  • 4x USB 2.0

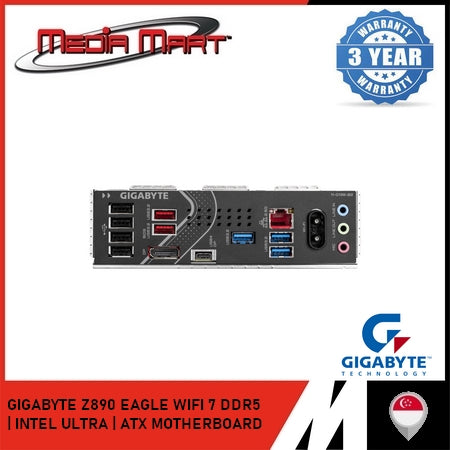

• Rear Panel:

  • 1x USB 3.2 Gen 2x2 Type-C

  • 4x USB 3.2 Gen 2 Type-A

  • 2x USB 3.2 Gen 1 Type-A

  • 2x USB 2.0

🌐 NETWORKING

• LAN: Intel® 2.5GbE LAN (Intel® I225-V)

• Wireless LAN: Intel® Wi-Fi 7 AXE2400 (2.4GHz / 5GHz / 6GHz, up to 6Gbps)

• Bluetooth: 5.4

🔧 INTERNAL CONNECTORS

• Power Connectors: 1x 24-pin ATX, 2x 8-pin CPU_PWR

• Cooling Headers:

  • 1x CPU Fan

  • 1x Pump Fan

  • 4x System Fans

• RGB & ARGB Headers:

  • 2x 5V ARGB (3-pin)

  • 1x 12V RGB (4-pin)

📦 PACKAGE DIMENSIONS & FORM FACTOR

• Form Factor: ATX (305mm x 244mm)

• Weight (Net / Gross): 1.5kg / 2.2kg
