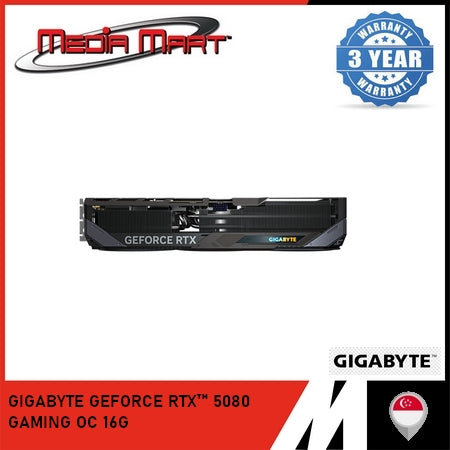

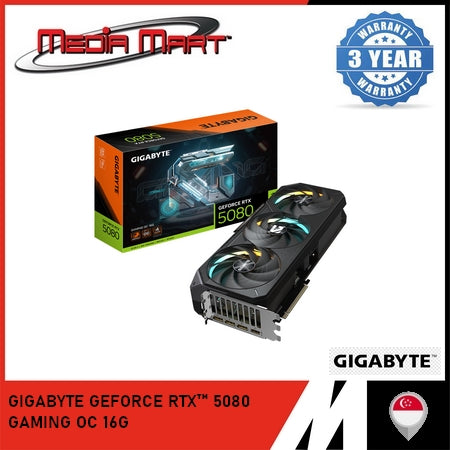

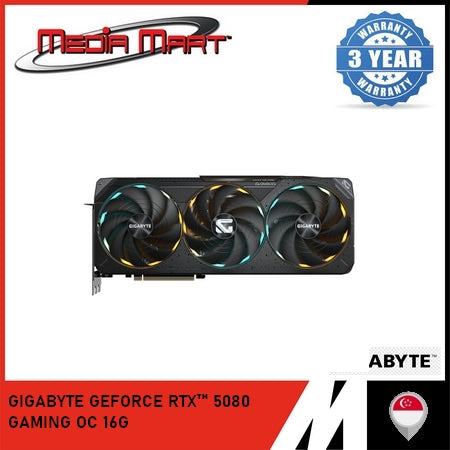

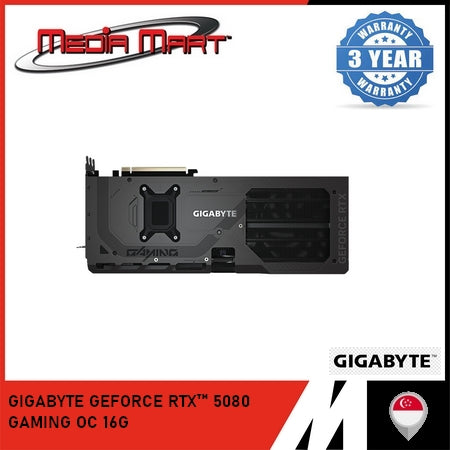

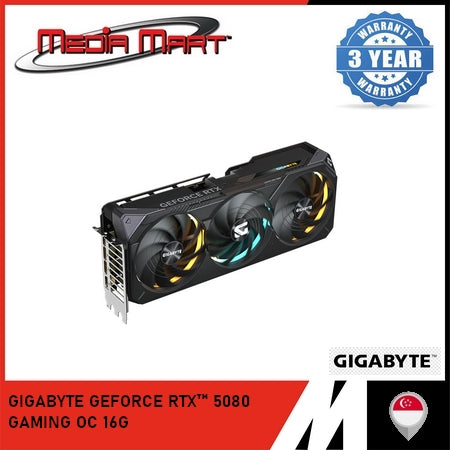

GIGABYTE GEFORCE RTX™ 5080 GAMING OC 16G GRAPHICS CARD

🔧 Specifications

• GPU Architecture: NVIDIA Blackwell (GB203)

• CUDA Cores: 10,752

• Memory: 16GB GDDR7, 256-bit interface

• Base Clock: 2295 MHz

• Boost Clock: 2730 MHz (factory overclocked)

• Memory Speed: 30 Gbps effective

• Memory Bandwidth: 960 GB/s

• Bus Interface: PCIe 5.0 x16

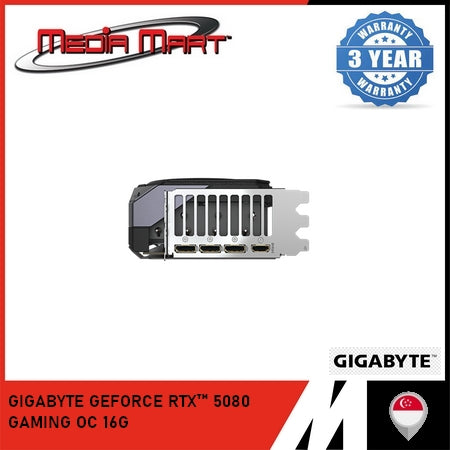

• Display Outputs: 3x DisplayPort 2.1a, 1x HDMI 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connector: 1x 16-pin

• Recommended PSU: 850W

❄️ Cooling & Design

• WINDFORCE Cooling System:

  • Triple Hawk fans

  • Composite copper heat pipes

  • Large vapor chamber

  • 3D active fans and screen cooling

  • Server-grade thermal conductive gel

• RGB Halo: Addressable RGB lighting for aesthetics

• Dual BIOS: Switch between Performance and Silent modes

• Reinforced Structure: Enhanced durability and anti-sag design

• Versatile VGA Holder: Supports the card's weight in various chassis

📏 Dimensions & Weight

• Length: 342 mm

• Height: 142 mm

• Width: 70 mm

• Weight: Approximately 1.8 kg (3.97 lbs)

🧠 AI & Rendering Technologies

• DLSS 4 with Multi Frame Generation: Utilizes AI to boost frame rates and image quality

• NVIDIA Reflex 2 with Frame Warp: Reduces system latency for competitive gaming

• Full Ray Tracing: Delivers realistic lighting and shadows

• NVIDIA ACE: Supports AI-driven digital humans and assistants

• NVIDIA Studio: Optimized for creative applications and workflows
