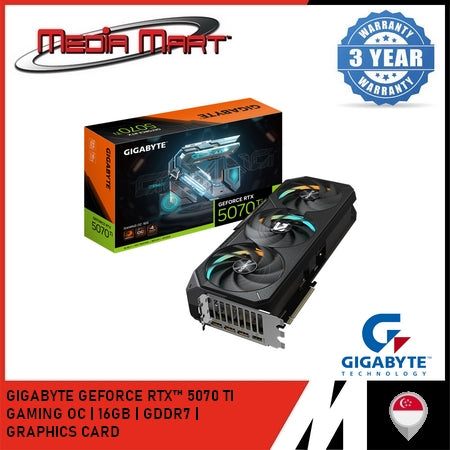

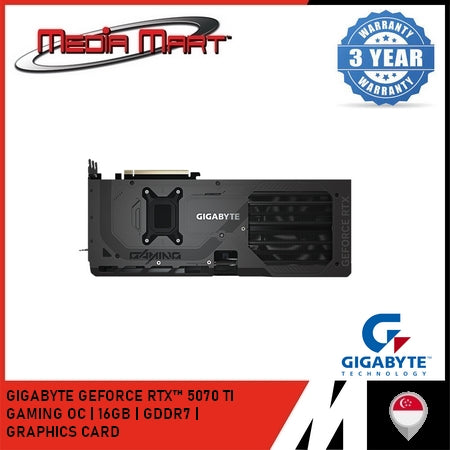

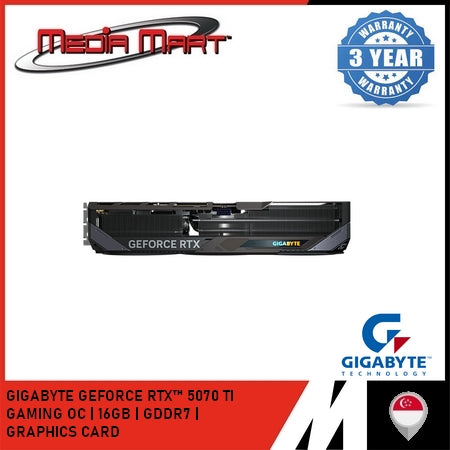

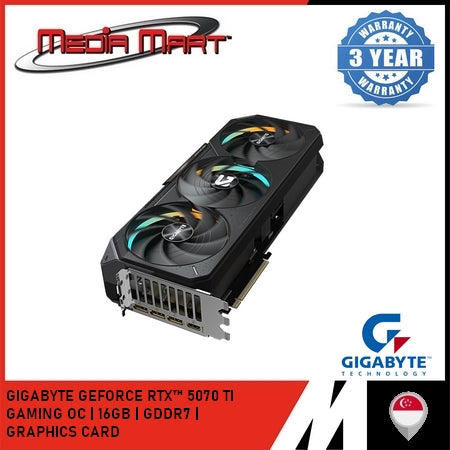

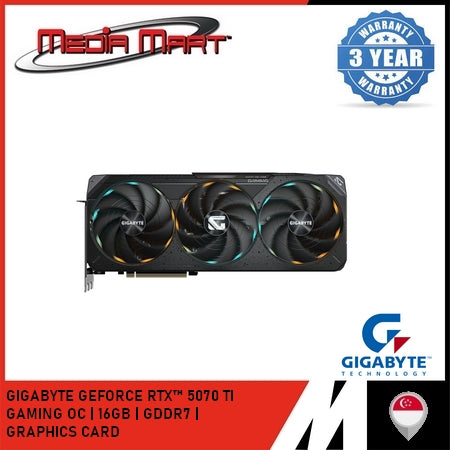

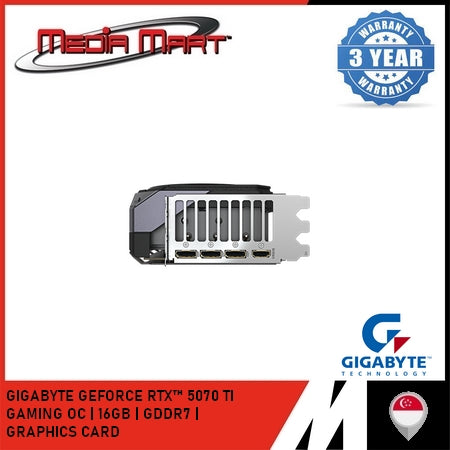

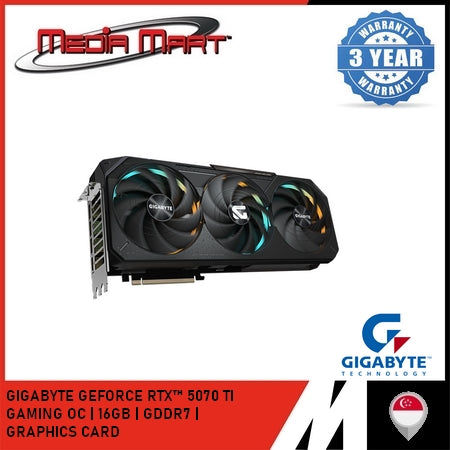

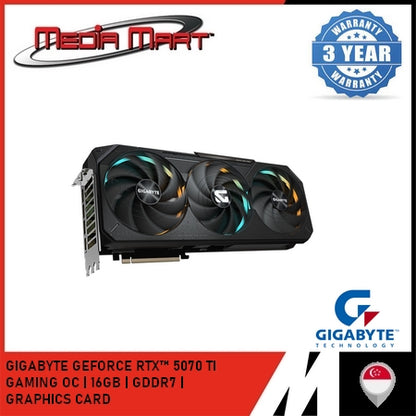

GIGABYTE GEFORCE RTX™ 5070 TI GAMING OC 16G GRAPHICS CARD

🔧 Specifications

• GPU Architecture: NVIDIA Blackwell (GB203)

• CUDA Cores: 8,960

• Tensor Cores: 280 (5th Gen)

• Ray Tracing Cores: 84 (4th Gen)

• Memory: 16GB GDDR7, 256-bit interface

• Memory Bandwidth: 896 GB/s

• Base Clock: 2,452 MHz

• Boost Clock: 2,588 MHz (factory overclocked)

• Memory Speed: 28 Gbps effective

• Interface: PCIe 5.0 x16

• Display Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connector: 1x 16-pin

• Recommended PSU: 700W

❄️ Cooling & Design

• WINDFORCE Cooling System:

  • Triple Hawk fans

  • Server-grade thermal conductive gel

• RGB Halo: Addressable RGB lighting for aesthetics

• Dual BIOS: Switch between Performance and Silent modes

• Reinforced Structure: Enhanced durability and anti-sag design

• Versatile VGA Holder: Supports the card's weight in various chassis

• Warranty: 4 years (online registration required)

📐 Dimensions & Weight

• Length: 340 mm (13.4 inches)

• Width: 140 mm (5.5 inches)

• Height: 70 mm (2.8 inches)

• Slot Width: Triple-slot

• Weight: Approximately 1.78 kg (3.92 lbs)

🧠 AI & Rendering Technologies

• DLSS 4 with Multi Frame Generation: Utilizes AI to boost frame rates and image quality

• NVIDIA Reflex 2 with Frame Warp: Reduces system latency for competitive gaming

• Full Ray Tracing: Delivers realistic lighting and shadows

• NVIDIA ACE: Supports AI-driven digital humans and assistants

• NVIDIA Studio: Optimized for creative applications and workflows
