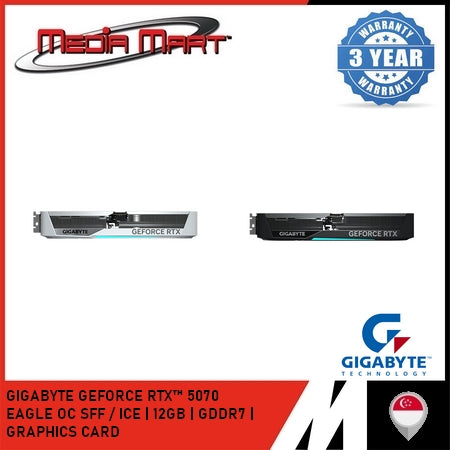

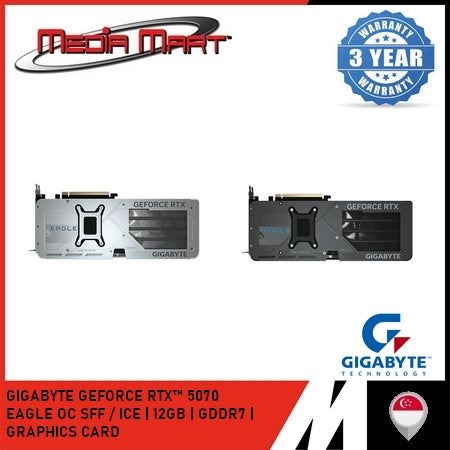

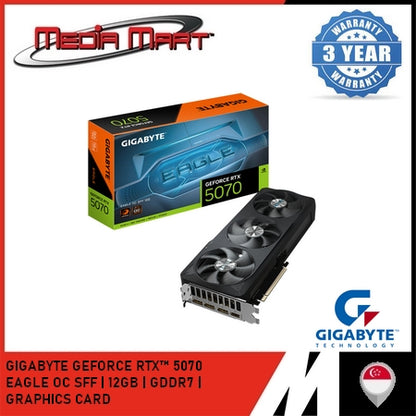

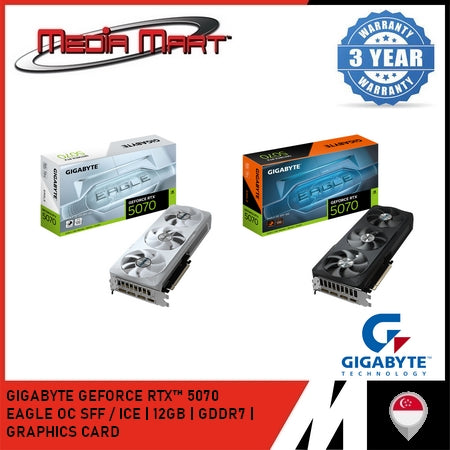

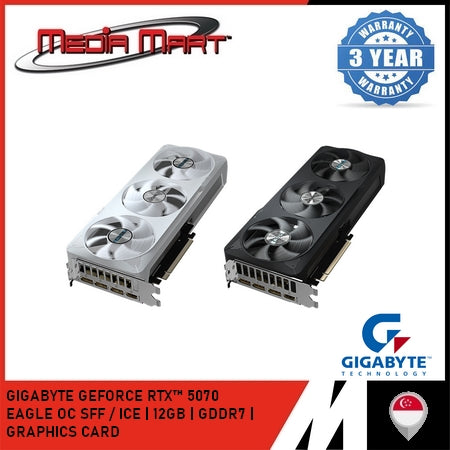

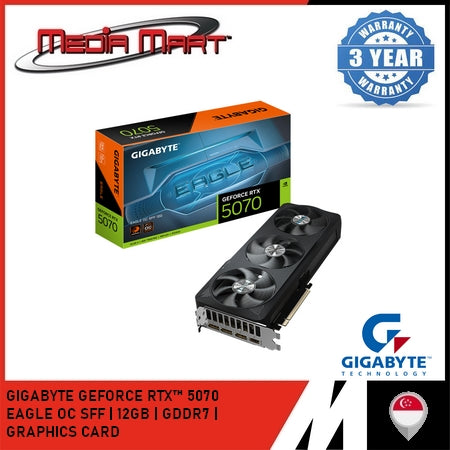

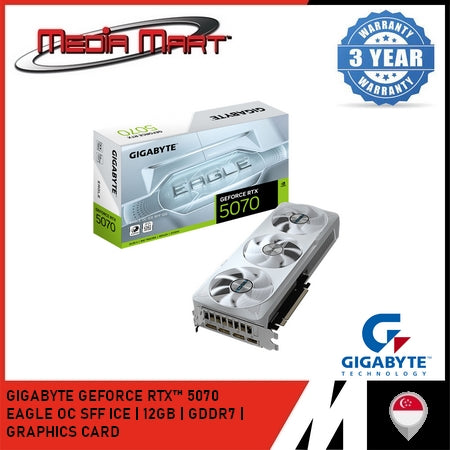

GIGABYTE GEFORCE RTX™ 5070 EAGLE | ICE | OC SFF 12G GRAPHICS CARD

🔧 Key Specifications

• GPU Architecture: NVIDIA Blackwell (GB205-300-A1)

• CUDA Cores: 6,144

• Tensor Cores: 192 (5th Gen)

• Ray Tracing Cores: 48 (4th Gen)

• Base Clock: 2,325 MHz

• Boost Clock: 2,587 MHz (factory overclocked)

• Memory: 12GB GDDR7, 192-bit interface

• Memory Speed: 28 Gbps effective

• Memory Bandwidth: 672 GB/s

• Bus Interface: PCIe 5.0 x16

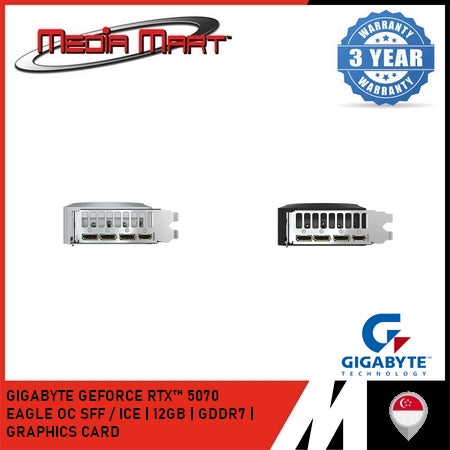

• Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connector: 1 x 16-pin (12V-2x6)

• Recommended PSU: 750W

📐 Dimensions & Weight

• Length: 290 mm (11.4 inches)

• Width: 120 mm (4.7 inches)

• Height: 50 mm (2.0 inches)

• Slot Width: Approximately 2.5-slot

• Weight: Approximately 1.5 kg (3.3 lbs)

❄️ Cooling & Design Features

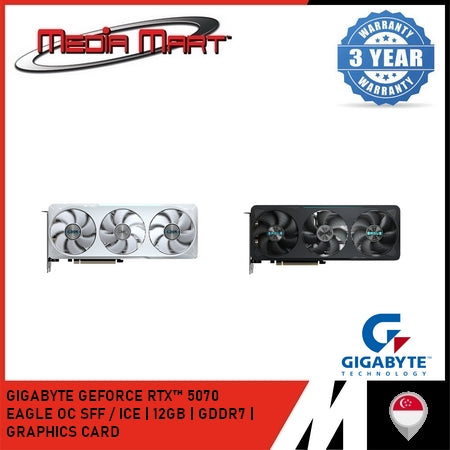

• Cooling System: WINDFORCE with Hawk fan and server-grade thermal conductive gel

• RGB Lighting: Customizable RGB lighting for aesthetics

• Reinforced Structure: Enhanced durability and anti-sag design

• NVIDIA SFF-Ready: Optimized for small form factor builds

🧠 AI & Rendering Technologies

• DLSS 4 with Multi Frame Generation: Utilizes AI to boost frame rates and image quality

• NVIDIA Reflex 2 with Frame Warp: Reduces system latency for competitive gaming

• Full Ray Tracing: Delivers realistic lighting and shadows

• NVIDIA Studio: Optimized for creative applications and workflows
