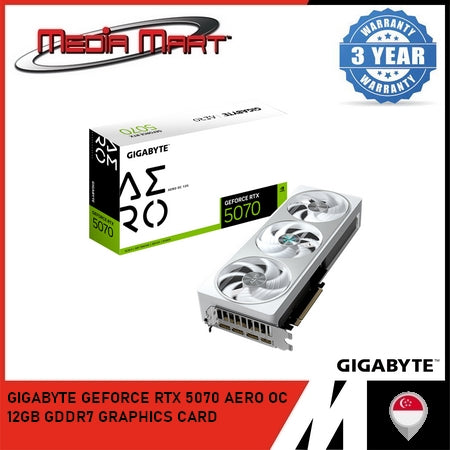

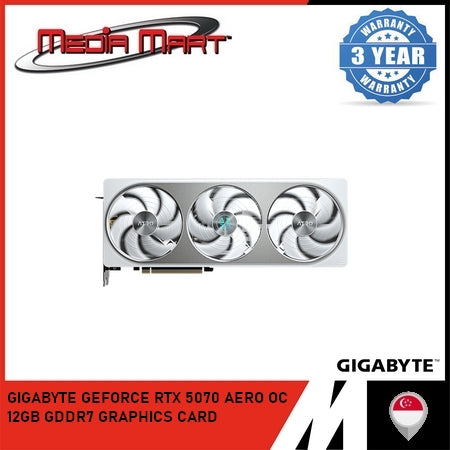

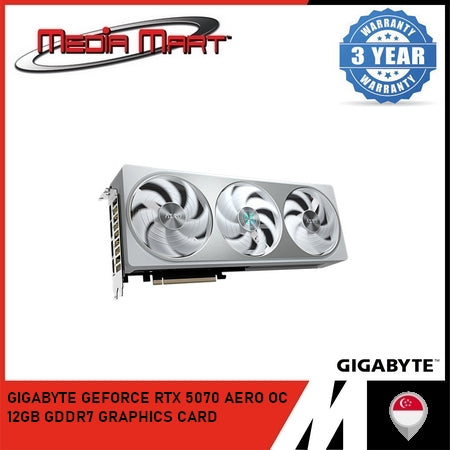

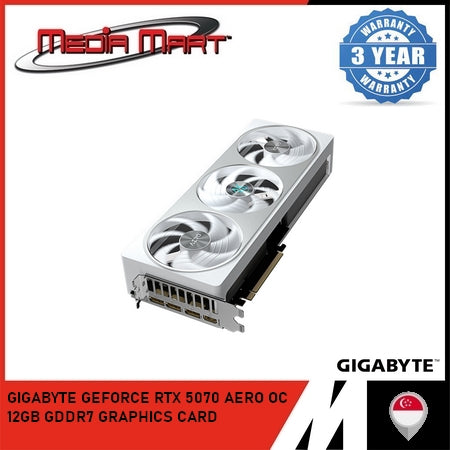

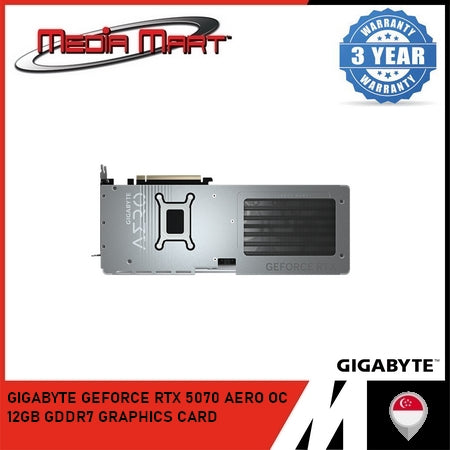

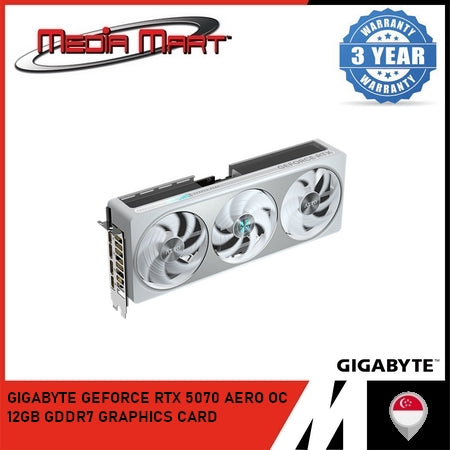

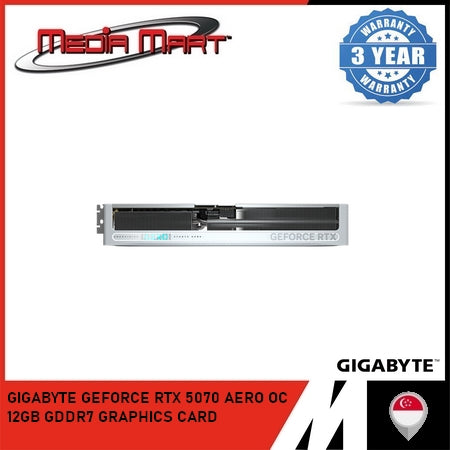

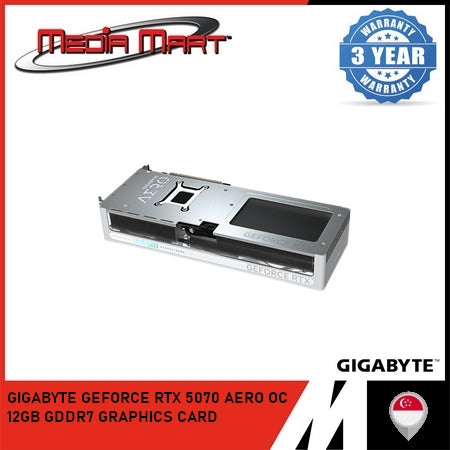

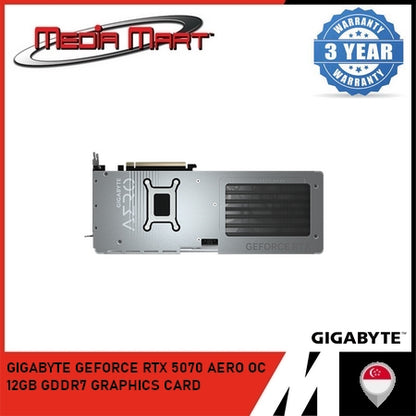

GIGABYTE GEFORCE RTX™ 5070 AERO OC 12G GRAPHICS CARD

🔧 Specifications

• GPU Architecture: NVIDIA Blackwell (GB205-300-A1)

• CUDA Cores: 6,144

• Tensor Cores: 192 (5th Gen)

• Ray Tracing Cores: 48 (4th Gen)

• Memory: 12GB GDDR7, 192-bit interface

• Memory Bandwidth: 672 GB/s

• Base Clock: 2,325 MHz

• Boost Clock: 2,625 MHz (factory overclocked)

• Memory Speed: 28 Gbps effective

• Interface: PCIe 5.0 x16

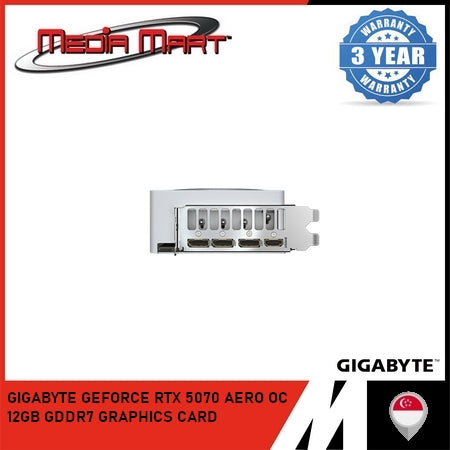

• Display Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Power Connector: 1x 16-pin

• Recommended PSU: 750W

❄️ Cooling & Design

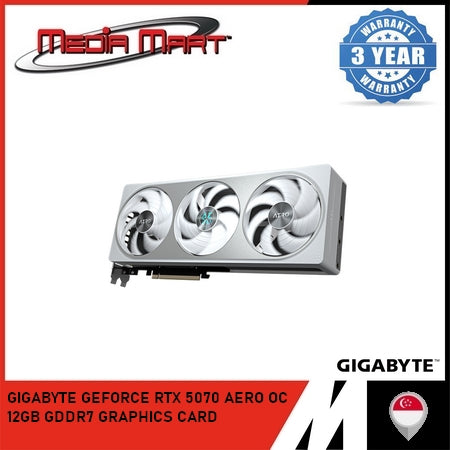

• WINDFORCE Cooling System:

  • Triple Hawk fans

  • Server-grade thermal conductive gel

• RGB Lighting: Customizable RGB lighting for aesthetics

• Dual BIOS: Switch between Performance and Silent modes

• Reinforced Structure: Enhanced durability and anti-sag design

• Versatile VGA Holder: Supports the card's weight in various chassis

• Warranty: 4 years (online registration required)

📐 Dimensions & Weight

• Length: 324 mm (12.8 inches)

• Width: 130 mm (5.1 inches)

• Height: 56 mm (2.2 inches)

• Slot Width: Approximately 2.5-slot

• Weight: Approximately 2 kg (4.41 lbs)

🧠 AI & Rendering Technologies

• DLSS 4 with Multi Frame Generation: Utilizes AI to boost frame rates and image quality

• NVIDIA Reflex 2 with Frame Warp: Reduces system latency for competitive gaming

• Full Ray Tracing: Delivers realistic lighting and shadows

• NVIDIA ACE: Supports AI-driven digital humans and assistants

• NVIDIA Studio: Optimized for creative applications and workflows
