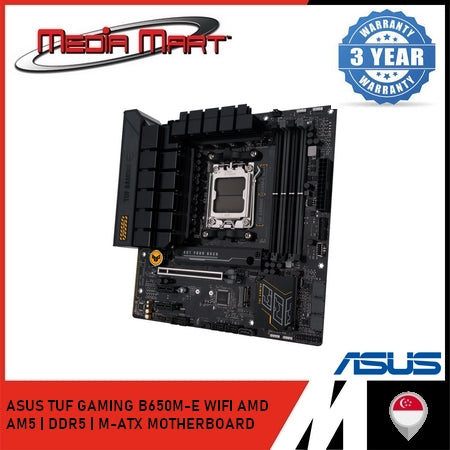

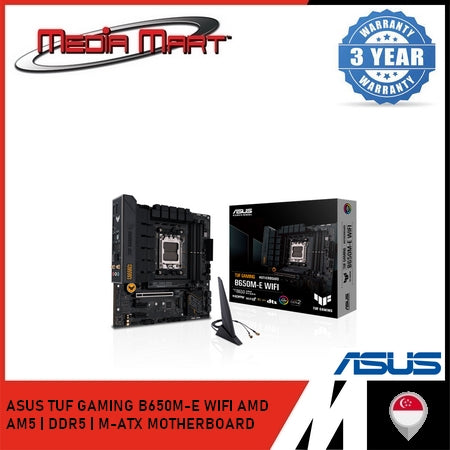

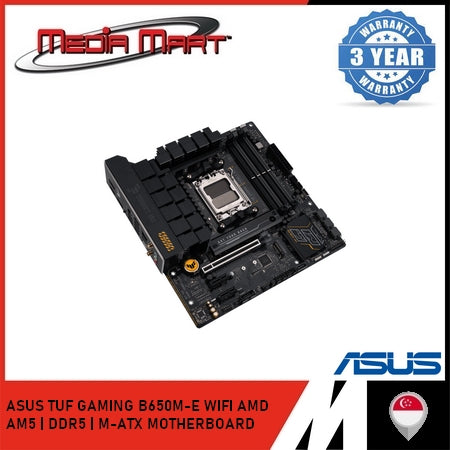

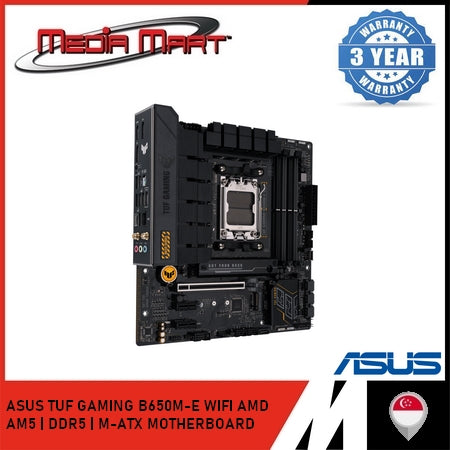

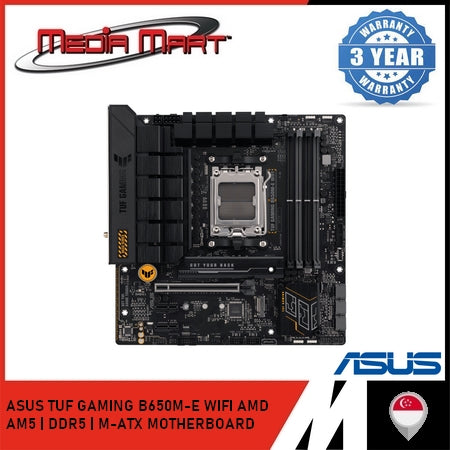

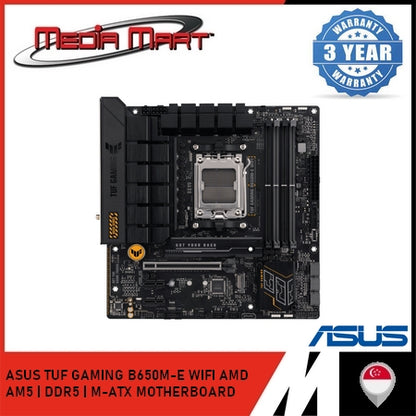

ASUS TUF GAMING B650M-E WIFI AMD AM5 | DDR5 | M-ATX MOTHERBOARD

ASUS TUF GAMING B650M-E WIFI – Motherboard Summary

CPU Support

• AMD AM5 socket

• Compatible with AMD Ryzen™ 9000, 8000, and 7000 series desktop processors

Chipset

• AMD B650

Memory

• 4x DDR5 DIMM slots, up to 192GB total

• Supported Speeds: DDR5 4800 to 7600+(OC)

• ECC and Non-ECC, un-buffered

• Dual channel, EXPO™ profiles, OptiMem II

Graphics Outputs

• 2 x DisplayPort 1.4 (up to 8K@60Hz)

• 1 x HDMI 2.1 (up to 4K@60Hz)

Graphics output requires an APU with integrated graphics

Expansion Slots

• 1 x PCIe 4.0 x16

  • x16 mode (Ryzen 9000/7000)

  • x8/x4 mode (Ryzen 8000)

• 2 x PCIe 4.0 x1

Storage

• 2 x M.2 Slots:

  • M.2_1: PCIe 5.0 x4 (9000/7000), PCIe 4.0 x4 (8000)

  • M.2_2: PCIe 4.0 x4 or x4/x2

• 4 x SATA 6Gb/s

• Supports NVMe and SATA RAID 0/1/10 (RAIDXpert2)

Networking

• Wired: Realtek 2.5Gb Ethernet (TUF LANGuard)

• Wireless: Wi-Fi 6 (1x1, 802.11ax, dual-band)

• Bluetooth: v5.2

Audio

• Realtek 7.1 HD Audio Codec

  • Premium capacitors, shielding, front panel retasking

  • Up to 24-bit/192kHz playback

  • DTS Audio Processing

USB Ports

Rear I/O (8 Total):

• 1 x USB 3.2 Gen 2 Type-C

• 1 x USB 3.2 Gen 2 Type-A

• 2 x USB 3.2 Gen 1

• 4 x USB 2.0

Front Panel (7 Total):

• 1 x USB 3.2 Gen 1 Type-C header

• 1 x USB 3.2 Gen 1 header (for 2 ports)

• 2 x USB 2.0 headers (for 4 ports)

Internal Connectors

• 2 x M.2, 4 x SATA

• 1 x USB-C header (Gen 1)

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0 headers

• 1 x 4-pin CPU Fan

• 1 x 4-pin CPU OPT Fan

• 1 x 4-pin AIO Pump

• 2 x 4-pin Chassis Fan

• 3 x Addressable Gen 2 RGB headers

• 1 x Aura RGB header

• Front panel audio (AAFP), Clear CMOS, COM, and Debug headers

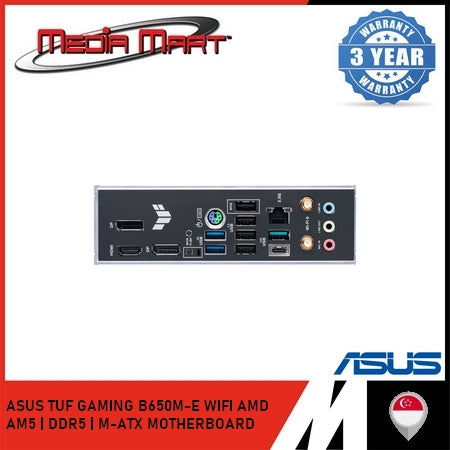

Back Panel I/O

• 2 x DisplayPort, 1 x HDMI

• 8 x USB ports (as above)

• 1 x 2.5Gb Ethernet

• 3 x Audio jacks

• 1 x PS/2 combo port

• 1 x BIOS FlashBack™ button

• Wi-Fi antenna connectors

Special Features

• TUF Protection (ESD, Overvoltage, Stainless I/O, SafeSlot Core+)

• ASUS Q-Design (Q-LED, Q-Latch, Q-Slot, Q-DIMM)

• M.2 & VRM heatsinks

• Aura Sync RGB

Software

• Armoury Crate, AI Suite 3, TurboV EVO, DTS Audio, TUF CPU-Z

• Norton 360 (60-day trial), WinRAR

BIOS

• 256Mb UEFI AMI BIOS

• CrashFree BIOS 3, EZ Flash 3

Form Factor

• micro-ATX, 9.6 x 9.6 in (24.4 x 24.4 cm)
