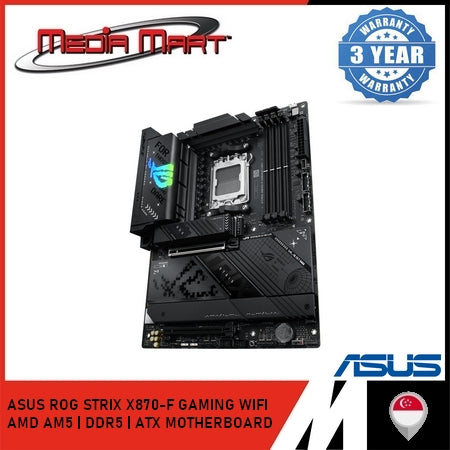

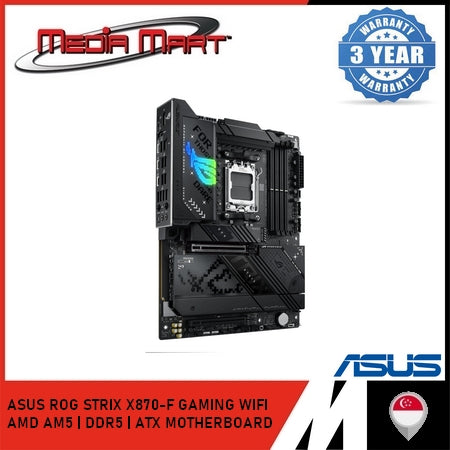

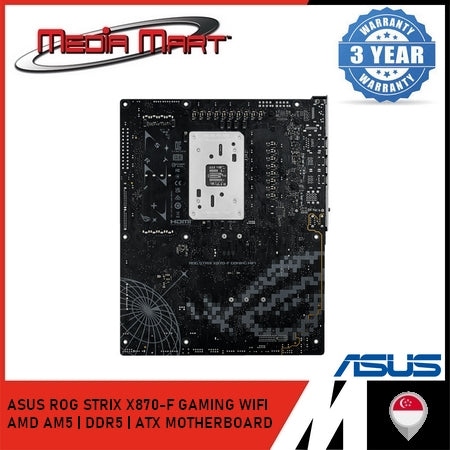

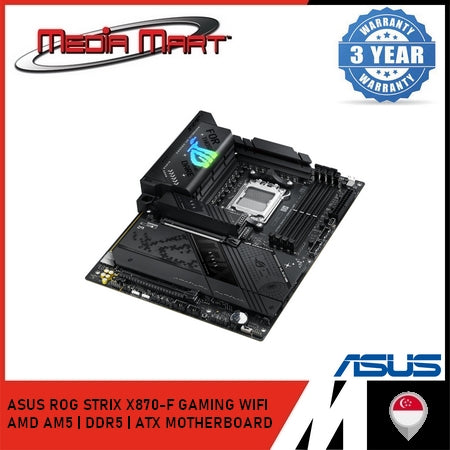

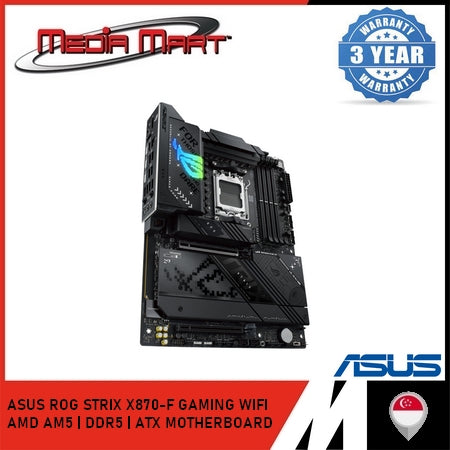

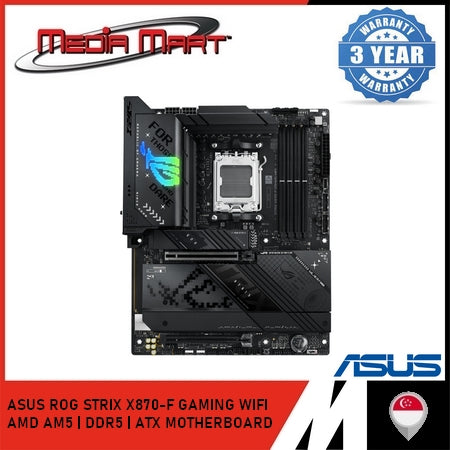

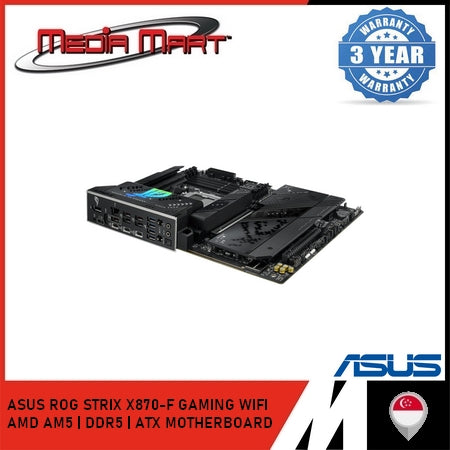

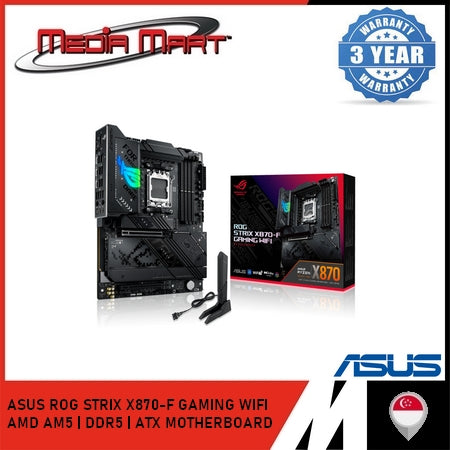

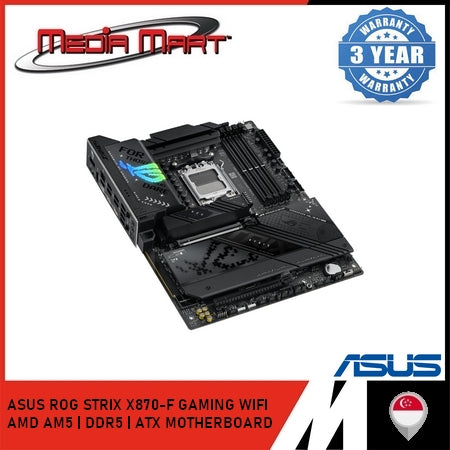

ASUS ROG STRIX X870-F GAMING WIFI ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ROG STRIX X870-F GAMING WIFI
Chipset: AMD X870
CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
*Refer to ASUS support site for full CPU compatibility.
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Up to 8000+ MT/s (OC) with Ryzen™ 9000/8000/7000 Series
Supports Dual-Channel, ECC & Non-ECC, Un-buffered, AMD EXPO™, ASUS AEMP
🎮 Graphics & Display:
1x HDMI™ port (Up to 4K @ 60Hz via HDMI 2.1)
1x DisplayPort (Up to 8K @ 30Hz via DP 1.4)
2x USB4® (40Gbps, Type-C®) with DisplayPort 1.4a Alt Mode (up to 4K @ 60Hz)
*Display output support varies by CPU. Refer to AMD specifications.
🔌 Expansion Slots:
With Ryzen™ 9000 & 7000 Series:
1x PCIe 5.0 x16 (x16 mode)
With Ryzen™ 8000 Series:
1x PCIe 4.0 x16 (x8/x4 mode)
Chipset:
1x PCIe 4.0 x16 (x4 mode)
*PCIe bifurcation and compatibility varies. Refer to ASUS support.
💽 Storage Support:
From CPU:
M.2_1: PCIe 5.0 x4 (2242/2260/2280)
M.2_2: PCIe 5.0 x4 (2242/2260/2280/22110)*
*Disabled with Ryzen™ 8000 CPUs
From Chipset:
M.2_3: PCIe 4.0 x4 (2280)*
M.2_4: PCIe 4.0 x4 (2280)
2x SATA 6Gb/s ports
*Shared bandwidth with PCIe slots. Refer to official support for detailed config.
RAID Support:
Ryzen™ 9000: RAID 0/1/5/10
Ryzen™ 8000: RAID 0/1
🎧 Audio:
ROG SupremeFX ALC4080 7.1 Surround Sound HD Audio CODEC
Front/Rear Impedance Sense, Multi-streaming, MIC retasking
32-bit/384 kHz playback, 120 dB SNR playback, 110 dB SNR recording
Savitech SV3H712 AMP, Optical S/PDIF Out
*Rear LINE OUT does not support spatial audio. Use front panel or USB audio for spatial features.
⚡ USB Connectivity:
Rear:
2x USB4® (40Gbps, Type-C® with DP Alt mode)
6x USB 10Gbps (5x Type-A + 1x Type-C®, up to 30W PD)
4x USB 5Gbps (Type-A)
Front:
1x USB 20Gbps (Type-C®)
2x USB 5Gbps headers (4 ports)
2x USB 2.0 headers (4 ports)
🌐 Networking:
LAN:
1x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 6.5Gbps
Bluetooth: v5.4
*Wi-Fi 7 full support requires Windows 11 24H2 or later
🔧 Internal Connectors:
Power:
1x 24-pin ATX
2x 8-pin CPU
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
5x Chassis Fan
Storage:
4x M.2 Slots
2x SATA 6Gb/s
USB:
1x USB 20Gbps (Type-C®)
2x USB 5Gbps headers (4 ports)
2x USB 2.0 headers (4 ports)
Misc:
3x Addressable Gen2 headers
1x Front Panel Audio header
1x FlexKey button
1x Start button
1x 10-1 pin System Panel
1x Thermal Sensor
1x CPU Over Voltage jumper
1x PCIe Mode switch
1x Chassis Intrusion header
🔆 LED & Special Features:
Extreme Engine Digi+:
5K Black Metallic Capacitors
ASUS Q-Design:
Q-Antenna, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim, Q-DIMM, Q-LED (CPU, DRAM, VGA, Boot), Q-Slot
Thermal Solutions:
VRM & M.2 heatsinks, M.2 backplate
DIY Tools:
BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM, Pre-mounted I/O shield, ProCool II
Aura Sync:
Addressable Gen2 RGB headers
🧰 Software Features:
ROG Exclusive:
ROG CPU-Z, Dolby Atmos
ASUS Exclusive:
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4, AIDA64 (60-day trial), HWiNFO, TurboV Core, USB Wattage Watcher, ASUS DriverHub, GlideX, Power Saving, GameFirst, WinRAR (40-day trial), Adobe CC Trial, Norton 360 for Gamers (60-day trial)
UEFI BIOS:
AI Overclocking Guide, EZ Flash 3, CrashFree BIOS 3, EZ Mode, MyHotkey, Dynamic OC Switcher, FlexKey
📦 Included Accessories:
2x SATA 6Gb/s cables
ASUS WiFi Antennas
Cable ties pack
M.2 Q-Latch package
M.2 Q-Slide package
M.2 Rubber kits
ROG key chain
ROG Strix stickers
Quick start guide
🖥 Operating System:
Support for Windows® 11 (Full functions on 24H2 or later)
📐 Package Dimensions & Form Factor:
Form Factor: ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
