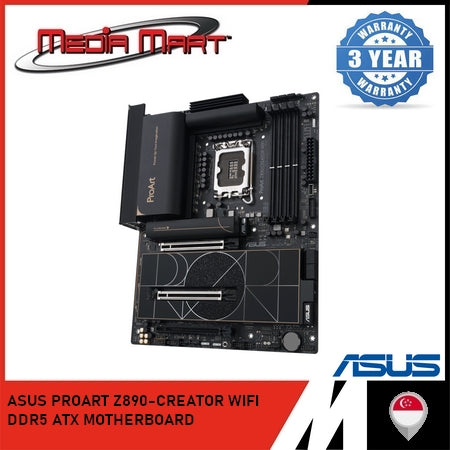

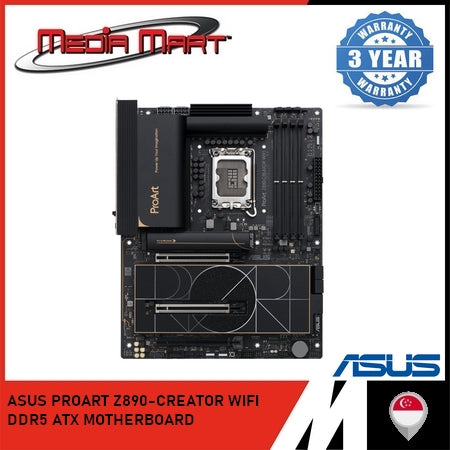

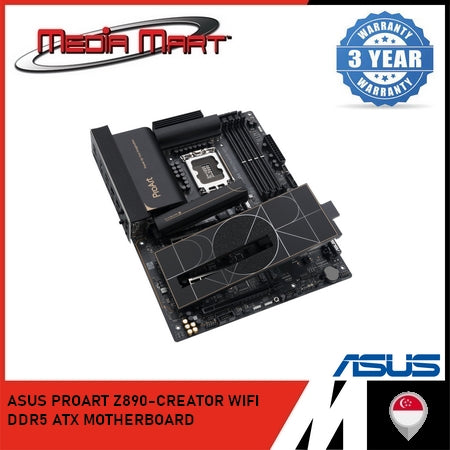

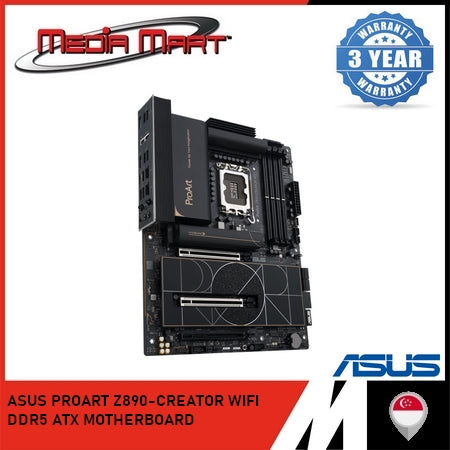

ASUS PROART Z890-CREATOR WIFI ATX MOTHERBOARD

🛠 Chipset & CPU Support:
Model: ProArt Z890-CREATOR WIFI
Chipset: Intel® Z890 Chipset
CPU Support: Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
💾 Memory Specifications:
Memory Slots: 4x DDR5 DIMM, up to 256GB
Supported Speeds:
Overclocked: Up to 9066+ MT/s (OC)
Supports Dual-Channel, Non-ECC, Un-buffered, Clocked Unbuffered DIMMs (CUDIMM), XMP, ASUS AEMP III
Supports DIMM Flex and DIMM Fit
🎮 Graphics & Display:
1x HDMI™ 2.1: Up to 4K @ 60Hz
2x Thunderbolt™ 5 USB Type-C®: Supports up to 2x 8K@60Hz + 1x 4K@60Hz (DP in) or 1x 8K@60Hz + 1x 4K@60Hz (no DP in)
1x Thunderbolt™ 4 USB Type-C®: Supports up to 8K@60Hz
1x DisplayPort (Input only)
Note: When using two displays via Thunderbolt™ 5, Thunderbolt™ 4 port is disabled.
🔌 Expansion Slots:
From CPU:
2x PCIe 5.0 x16 (supports x16 or x8/x8 mode)
From Chipset:
1x PCIe 4.0 x16 (x4 mode)
💽 Storage Support:
M.2 Slots:
M.2_1 (CPU): PCIe 5.0 x4, 2242/2260/2280/22110
M.2_2 (CPU): PCIe 4.0 x4, 2242/2260/2280
M.2_3 (Chipset): PCIe 4.0 x4, 2242/2260/2280
M.2_4 (Chipset): PCIe 4.0 x4, 2242/2260/2280
M.2_5 (Chipset): PCIe 4.0 x4 & SATA, 2242/2260/2280 (*disables PCIe 4.0 x16 slot)
SATA Ports:
4x SATA 6Gb/s
RAID Support:
Supports RAID 0/1/5/10 (PCIe & SATA). CPU-based M.2 supports RAID 0/1/5.
🎧 Audio:
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
Impedance sense, internal amplifier, jack-detection
32-bit/192 kHz playback (Stereo), 120 dB SNR playback, 113 dB SNR recording
Gold-plated jacks, Premium capacitors, Dedicated PCB layers
⚡ USB Connectivity:

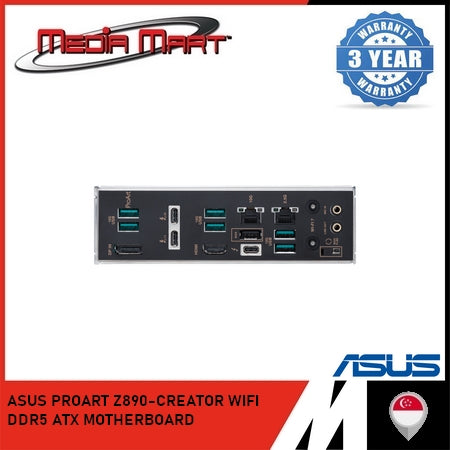

Rear:
2x Thunderbolt™ 5 (USB Type-C®)
1x USB4 / Thunderbolt™ (USB Type-C®)
6x USB 10Gbps (Type-A)
1x USB 2.0 (Type-A)
Front:
1x USB 20Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
1x USB 2.0 header (2 ports)
🌐 Networking:
LAN:
1x Marvell® AQtion 10Gb Ethernet
1x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi: Wi-Fi 7 (2x2, 802.11be), 2.4/5/6GHz, up to 5.8Gbps
Bluetooth: v5.4
🔧 Internal Connectors:
Power:
1x 24-pin ATX_PWR
2x 8-pin CPU_PWR
Cooling:
1x CPU Fan
1x CPU OPT Fan
1x AIO Pump
5x Chassis Fan
Storage:
5x M.2 Slots
4x SATA 6Gb/s
USB:
1x USB 20Gbps (USB Type-C®)
1x USB 5Gbps header (2 ports)
1x USB 2.0 header (2 ports)
Misc:
3x Addressable RGB Gen2 headers
1x Clear CMOS button
1x COM Port header
1x CPU Overvoltage jumper
1x Front Panel Audio header
1x SPI TPM header (14-1 pin)
1x 10-1 pin Front Panel header
1x Thermal Sensor header
🔆 LED & Special Features:
ASUS 5X Protection III:
DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O
ASUS Q-Design:
M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED (CPU, DRAM, VGA, Boot)
ASUS Thermal Solutions:
M.2 heatsink + backplate, VRM heatsink
DIY Features:
BIOS FlashBack™ button & LED, Pre-mounted I/O shield, Clear CMOS, CPU Socket lever protector, ProCool II
Aura Sync:
Addressable Gen2 headers
Bespoke & Business:
24/7 reliability, Overcurrent protection
Software:
Armoury Crate, Aura Creator, Fan Xpert 4, ProArt Creator Hub, TurboV Core, Thunderbolt™ Share, USB Wattage Watcher
Adobe CC Trial, Norton 360 Trial, WinRAR Trial
UEFI BIOS:
AI Overclocking Guide, ASUS EZ Flash, MyHotkey, CrashFree BIOS 3
Management:
ASUS Control Center Express (ACCE), WOL by PME, PXE

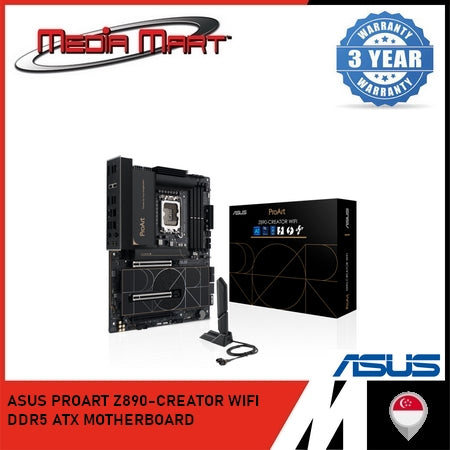

📦 Included Accessories:
2x SATA 6Gb/s cables
ASUS WiFi Q-Antenna
Q-Connector
2x M.2 Q-Latch packages
2x M.2 rubber packages
ProArt accessory bag
ACC Express activation key card
Quick start guide
🖥 Operating System:
Support for Windows® 11 (22H2 & later, full features on 24H2 or later)
📦 Package Dimensions & Form Factor:
Form Factor: ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
