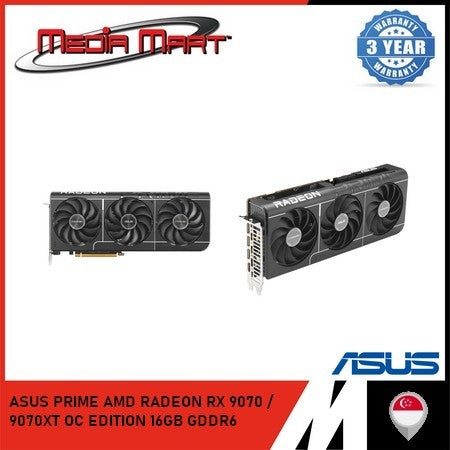

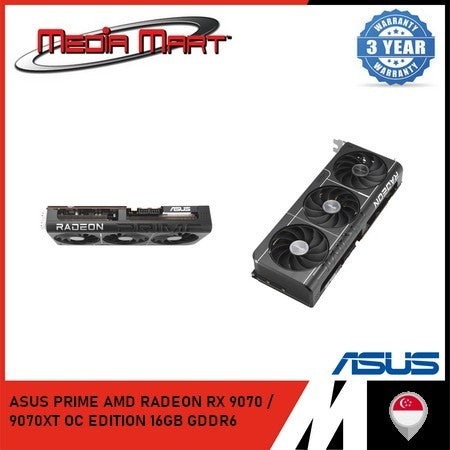

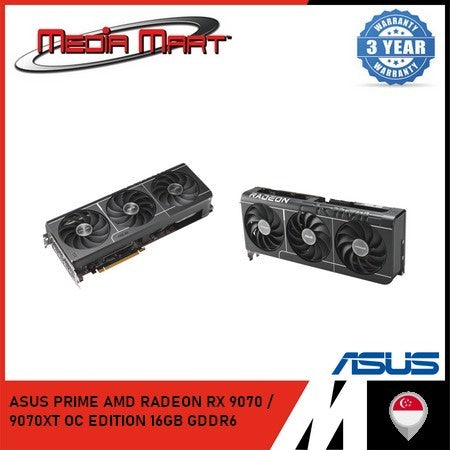

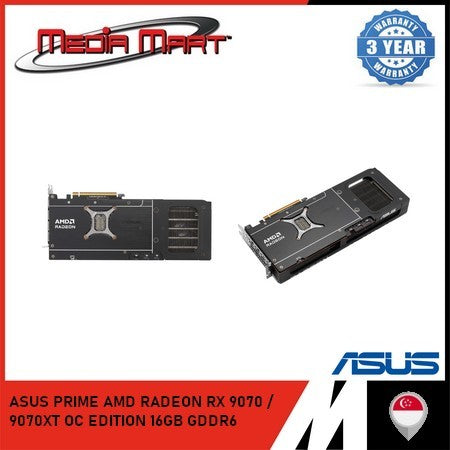

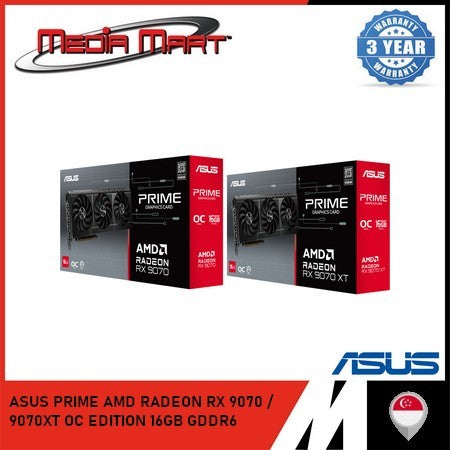

ASUS PRIME AMD RADEON RX 9070/9070XT 16GB GDDR6 OC EDITION GRAPHIC CARD

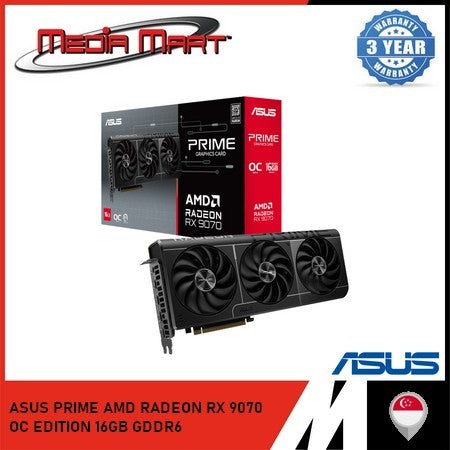

ASUS Prime Radeon RX 9070 OC Edition

• GPU Architecture: AMD RDNA 4 (Navi 48)

• Stream Processors: 3,584

• Base Clock: 1,330 MHz

• Game Clock: 2,120 MHz

• Boost Clock: 2,590 MHz (OC Mode)

• Memory: 16 GB GDDR6

• Memory Speed: 20 Gbps

• Memory Interface: 256-bit

• Memory Bandwidth: 644.6 GB/s

• Bus Interface: PCIe 5.0 x16

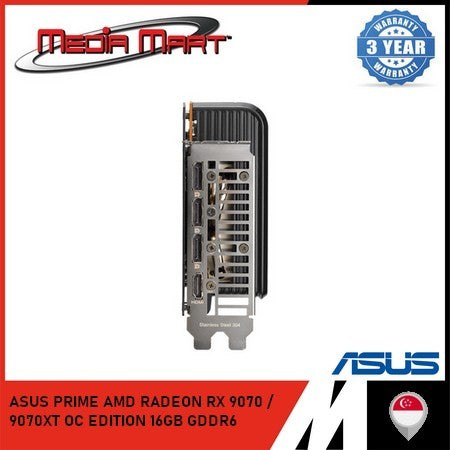

• Display Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b

• Maximum Digital Resolution: 7,680 × 4,320

• Slot Width: Triple-slot

• Dimensions: 312 mm (L) × 130 mm (W) × 50 mm (H)

• Recommended PSU: 750 W

• Power Connectors: 3× 8-pin

ASUS Prime Radeon RX 9070 XT OC Edition

• GPU Architecture: AMD RDNA 4 (Navi 48 XT)

• Stream Processors: 4,096

• Base Clock: 1,660 MHz

• Game Clock: 2,480 MHz

• Boost Clock: 3,030 MHz (OC Mode)

• Memory: 16 GB GDDR6

• Memory Speed: 20 Gbps

• Memory Interface: 256-bit

• Memory Bandwidth: 644.6 GB/s

• Bus Interface: PCIe 5.0 x16

• Display Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b

• Maximum Digital Resolution: 7,680 × 4,320

• Slot Width: 2.5-slot

• Dimensions: 312 mm (L) × 130 mm (W) × 50 mm (H)

• Recommended PSU: 750 W

• Power Connectors: 3× 8-pin
